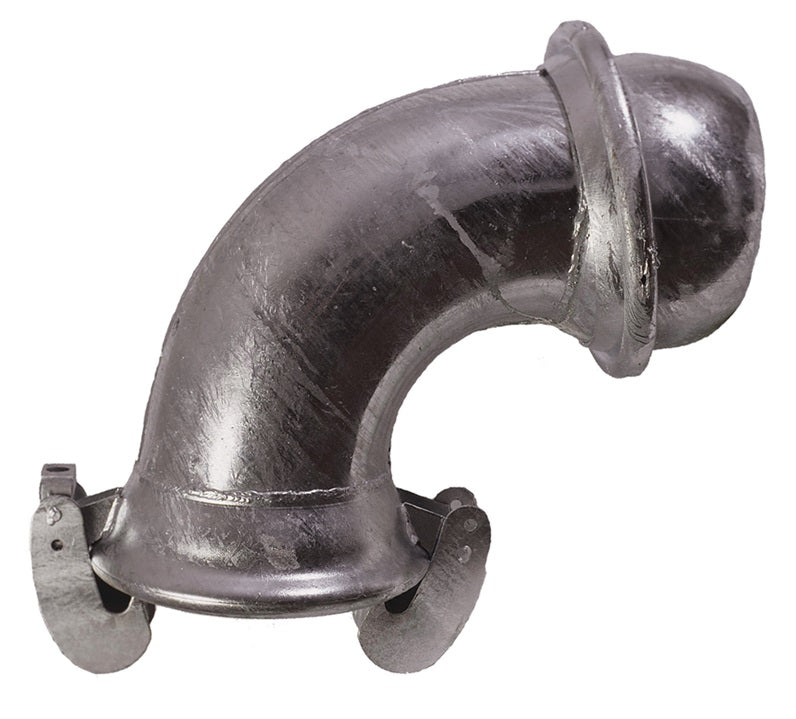

EL21512-90 by Dixon Valve | Type A (Agri-Lock) Quick Connect Fitting | 12" Size | 90° Elbow | Male x Female | Galvanized Steel

Save $615.66 Save $615.66
Original price $1,539.15
Original price $1,539.15 - Original price $1,539.15
Original price $1,539.15
Current price $923.49
$923.49 - $923.49
Current price $923.49

Dixon Valve
Type A (Agri-Lock) Quick Connect Fitting | 90° Elbow | Male x Female

Used primarily on irrigation and suction lines.


Specifications for Variant SKU: EL21512-90 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 12in Male Agri-Lock (Bauer) - Type-A, 12in Hose Barb
Material(s): Galvanized Steel
Features:
  • Double pin locking lever for smooth closing action.
  • Equipped with a safety pin to prevent accidental openings.
  • Locks on the female size.
  • Agri-Lock Style.
Construction:
  • Hot dipped, galvanized
  • Gasket included
Safety Notes:
  • These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.
Part Number Size
EL21510-90 10"
EL21512-90 12"

* 12" supplied with M20412 lever assist bar.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
