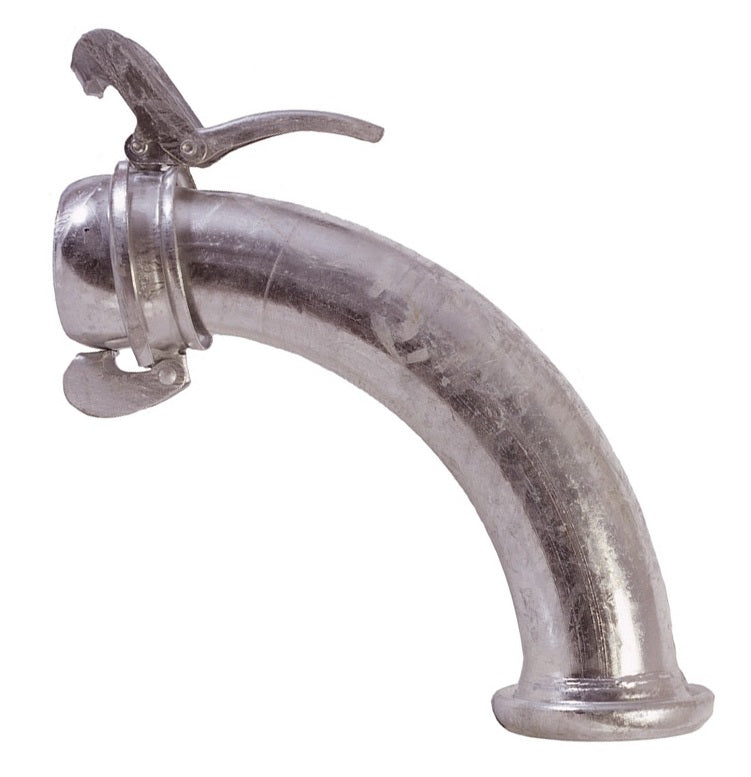

EL31510-90 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 10" Size | 90° Elbow | Male x Female | Galvanized Steel

Save $20.64

$928.76

$928.76 - $928.76

$928.76

$908.12

$908.12 - $908.12

$908.12

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | 90° Elbow | Male x Female

Used primarily on irrigation and suction lines.

Quantity

Specifications for Variant SKU: EL31510-90 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	10in Male Bauer - Type B, 10in Female Bauer - Type B
Material(s):	Galvanized Steel

Features:
Bauer style. locks on the male side. Has a double pin locking lever for smooth closing action. Equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized Gasket included
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| 90° Elbow \| Male x Female

Part Number	Size
EL3154-90	4"
EL3156-90	6"
EL3158-90	8"
EL31510-90*	10"
EL31512-90*	12"

*10" and 12" supplied with ACB304 lever assist bar

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
