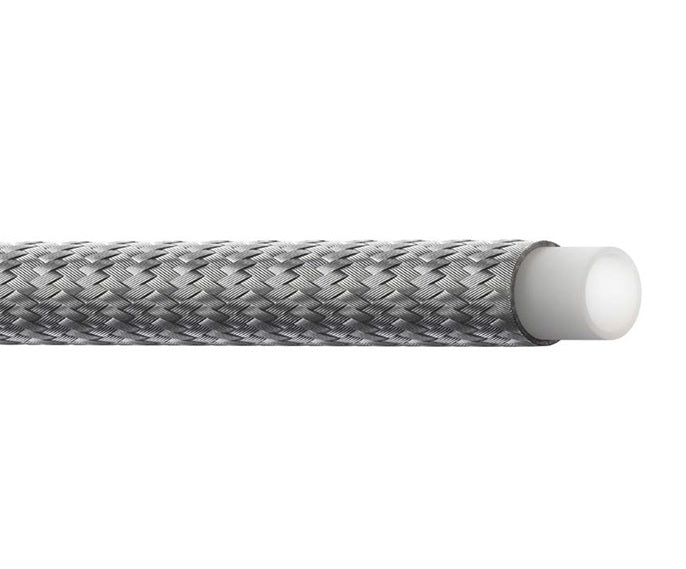

EN-16TW Everflex Winner by Danfoss | EN-TW-Series | Smooth Bore Non-Dissipating Teflon™ Hose | SAE 100R14 | 0.88" Hose ID | 1.05" Hose OD | Stainless Steel Braid

EN-16TW Everflex Winner by Danfoss | EN-TW-Series | Smooth Bore Non-Dissipating Teflon™ Hose | SAE 100R14 | 0.88" Hose ID | 1.05" Hose OD | Stainless Steel Braid

$15.35 - $15.35
$15.35
$15.35 - $15.35
$15.35

Everflex by Danfoss
Winner EN-TW Series | Smooth Bore Non-Dissipating Teflon™ Hose

Danfoss' Everflex hoses are the premier choice for hose products made from premium grade Teflon™ fluoropolymer for use in truck, chemical, hot melt, steam, packaging, paint, machinery, and many other demanding applications. The Danfoss Winner PTFE hoses compliment the Everflex family of products by providing performance that meets SAE 100R14 and are ideally suited for use in applications where high and low temperature, chemical resistance, low coefficient of friction, flexibility, and non-aging characteristics are required.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EN-16TW Danfoss
Brand: Aeroquip, Winner Everflex
Series: EN-TW Series
Hose Color(s): Metallic
Dash Size: -16
Internal Diameter: 0.88in
Outer Diameter: 1.05in
Tubing Construction: Smooth Bore Non-Dissipating PTFE
Cover Construction: Stainless Steel Braid
Applicable Specs & Approvals: SAE 100R14A, SAE 100R14B, SAE J517
Hose Properties:
Applications: Alternative fuels, Bus, truck, and off highway, Chemical transfer, Electric cooling, Engine, Fire/rescue air, Hot press, Paint and paint spraying, Steam SAE Ratings: SAE 100R14
Other Ratings: N/A Tube: Non-Conductive Teflon™ Fluoropolymer
Reinforcement: Stainless Steel Wire Braid Cover: One or Two Layers of Stainless Steel Wire Braid
Operating Parameters: -85°F to +456°F (-54°C to +236°C)
Part Number Hose ID Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius Weight Vacuum Service
mm in mm in bar psi bar psi mm in kg/m lbs/ft
EN-4TW 4.8mm 0.19" 7.9mm 0.31" 207 bar 3,000 psi 828 bar 12,000 psi 50mm 2.00" 0.09 kg/m 0.06 lbs/ft 28 in/Hg
EN-5TW 6.4mm 0.25" 9.80mm 0.39" 207 bar 3,000 psi 828 bar 12,000 psi 75mm 3.00" 0.12 kg/m 0.08 lbs/ft 28 in/Hg
EN-6TW 8.0mm 0.31" 11.60mm 0.46" 172 bar 2,500 psi 688 bar 10,000 psi 100mm 4.00" 0.15 kg/m 0.10 lbs/ft 28 in/Hg‡
EN-7TW 9.6mm 0.38" 13.00mm 0.51" 155 bar 2,250 psi 620 bar 9,000 psi 125mm 5.0" 0.16 kg/m 0.11 lbs/ft 28 in/Hg‡
EN-8TW 10.4mm 0.41" 14.20mm 0.56" 138 bar 2,000 psi 552 bar 8,000 psi 135mm 5.0" 0.18 kg/m 0.12 lbs/ft 28 in/Hg‡
EN-10TW 12.8mm 0.50" 16.40mm 0.65" 103 bar 1,500 psi 412 bar 6,000 psi 165.0mm 6.5" 0.25 kg/m 0.17 lbs/ft 28 in/Hg‡
EN-12TW 16.0mm 0.63" 19.80mm 0.78" 86 bar 1,250 psi 344 bar 5,000 psi 200mm 8.0" 0.28 kg/m 0.19 lbs/ft 28 in/Hg‡
EN-14TW 19.1mm 0.75" 23.30mm 0.92" 75 bar 1,100 psi 300 bar 4,400 psi 230mm 9.0" 0.37 kg/m 0.25 lbs/ft 28 in/Hg‡
EN-16TW 22.2mm 0.88" 26.70mm 1.05" 70 bar 1,000 psi 280 bar 4,000 psi 230mm 9.0" 0.40 kg/m 0.27 lbs/ft 12 in/Hg‡
EN-18TW 25.4mm 1.00" 28.80mm 1.17" 70 bar 1,000 psi 280 bar 4,000 psi 300mm 12.0" 0.79 kg/m 0.53 lbs/ft 12 in/Hg‡

‡ Maximum negative pressure for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06 and larger hose is recommended for tube support where extended or continuous service at high temperature together with low or negative pressure is expected.

WARNING: These hoses can be used to convey hazardous chemicals, steam, hot liquids, or other dangerous materials which can cause death, serious bodily injury including burns, pressure wounds, or chemical exposure if released accidentally. They should only be handled or worked on by personnel properly trained in the safe handling of the materials or chemicals conveyed in the hoses.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
