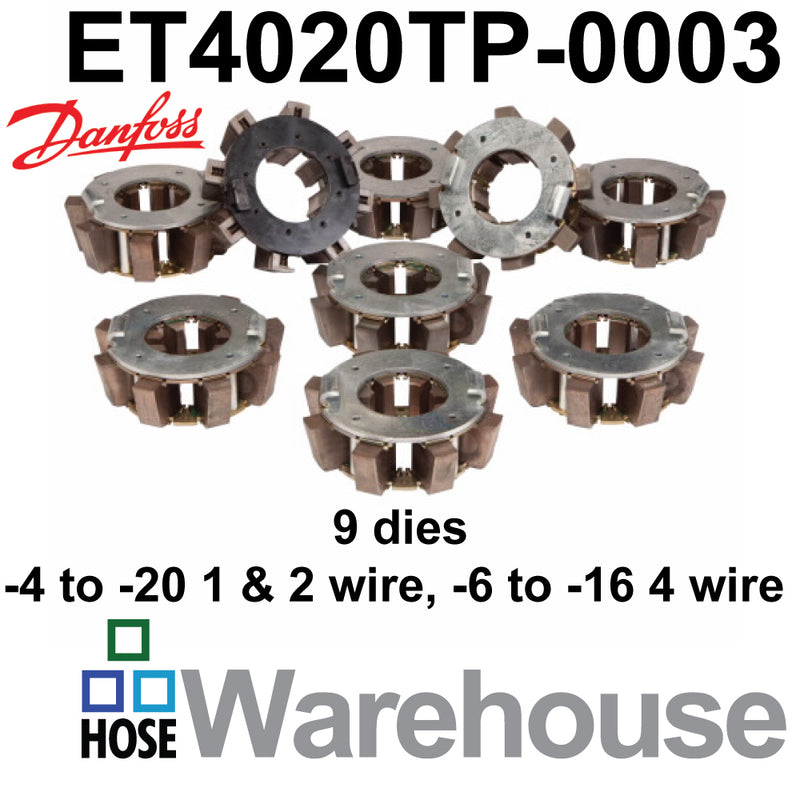

ET4020TP-0003 by Danfoss | Aeroquip | Die Package for -4, -6, -8, -12, -16, -20 Braided and -6, -8, -10, -12, -16 Spiral

ET4020TP-0003 by Danfoss | Aeroquip | Die Package for -4, -6, -8, -12, -16, -20 Braided and -6, -8, -10, -12, -16 Spiral

$2,249.41 - $2,249.41
$2,249.41
$2,249.41 - $2,249.41
$2,249.41

Eaton Aeroquip ET1187, FT1380, & FT1380e Variable Crimp Machines & Accessories
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ET4020TP-0003 Danfoss Tooling
Overview:
  • 9 Piece Die Set for Danfoss 1 1/4 capable Variable Crimpers ET1187, FT1380 and FT1380E

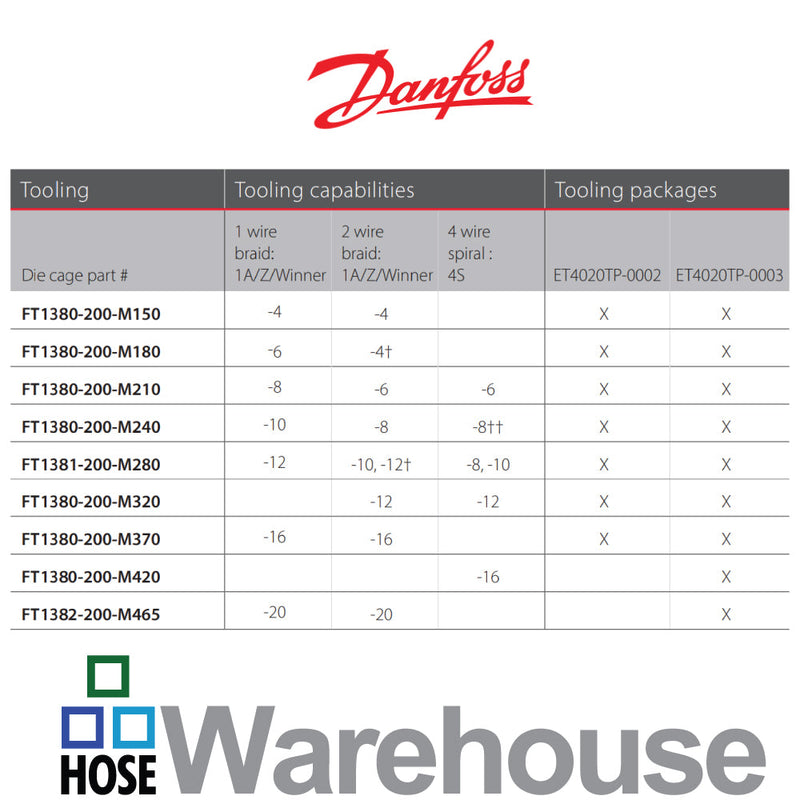

  • See Chart for Die Part Numbers
    Part No Description
    Crimp Machine Part Numbers
    ET1187-001 Bench Mount Machine, no pump, no tooling, base machine only (for premium hose GH681/H180, GH781/H280, GH493/H430)
    ET1187-002 Truck Mount Machine, no pump, no tooling, base machine only (for premium hose GH681/H180, GH781/H280, GH493/H430)
    ET1187-003 Bench Mount Machine, no pump, no tooling, base machine only (for standard hose EC115, EC215, EC415)
    ET1187-004 Truck Mount Machine, no pump, no tooling, base machine only (for standard hose EC115, EC215, EC415)
    ET1187C-0017 Bench Mount Bracket
    ET1187C-0019 Truck Mount Bracket
    Crimp Dies
    ET4020TP-0002 Die Package for -4, -6, -8, -12, -16 Braided and -6, -8, -10, -12 Spiral (Includes M150, M180, M210, M240, M280, M320, M370 Dies)
    FT1380-200-M420 Die for -16 Spiral
    FT1382-200-M465 Die for -20 Braided
    Pump Part Numbers*
    ET1000PK-001 2-Stage Hand Pump
    ET1000PK-002 Air/Hydraulic Pump
    ET1000PK-003 110 Volt Electric Pump
    ET1000PK-004 12 Volt DC Electric Pump
    Accessory Part Numbers
    T-400-G 1.5 oz. Tube, High Efficiency PTFE Grease
    FF91455 16 oz. Can, High Efficiency PTFE Grease
    * These pump kits include the pump, connecting hose assembly, and all of the adapters necessary to connect the pump to the ET1187 crimp machine.
    Danfoss (Eaton - Aeroquip)

    Danfoss (Eaton - Aeroquip)

    Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

    Shop Parts by Danfoss (Eaton - Aeroquip)
