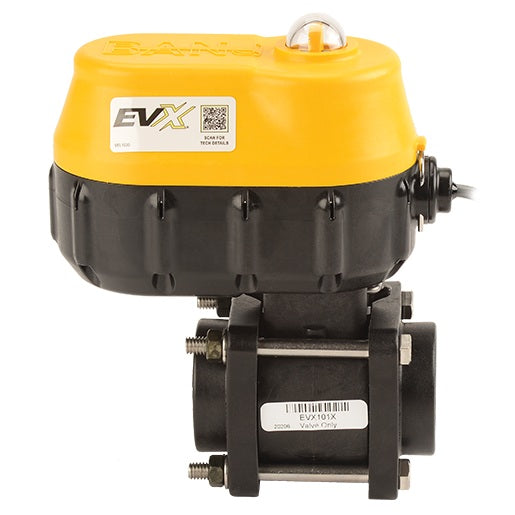

EVX101 by Banjo | EVX On/Off Bolted Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $136.80

$478.79

$478.79 - $478.79

$478.79

$341.99

$341.99 - $341.99

$341.99

Banjo® Liquid Handling Products
EVX On/Off Bolted Electric Valve | Full Port

Specifications for Variant SKU: EVX101 Banjo
Series:	EVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated 24-volt available Open/closed indicator 3/4"-1-1/4" ON/OFF has 3/4 sec response 1-1/2" ON/OFF has 1-1/2 sec response Regulating has 4 sec response Open/Close verification wires available IP68 waterproof -0 to 150F (-18 to 65C) operating -67 to 221F (-55 to 105C) storage On/Off Actuator rated to 500,000 cycles Regulating Actuator rated to 250,000 cycles Valve rated to 50,000 cycles leak-free Bolted valves have the same exact dimensions as our legacy EV valves. Additional protocols available including CAN/ISO BUS
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Repair Kit
EVX071	3/4" Full Port Electric Valve	300 PSI	3/4"	1"	VP20153SH	EVX10200
EVX101	1" Full Port Electric Valve	300 PSI	1"	1"	VP20153SH	EVX10200
EVX121	1-1/4" Standard Port Electric Valve	300 PSI	1-1/4"	1"	VP20153SH	EVX10200
EVX151	1-1/2" Full Port Electric Valve	250 PSI	1-1/2"	1-1/2"	VP20153SH	EVX20200
