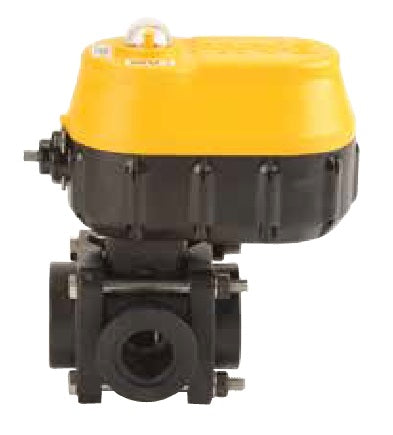

EVX150BL by Banjo | EVX Bolted Side Load Electric Valve | Full Port | 1-1/2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

Save $213.97

$748.89

$748.89 - $748.89

$748.89

$534.92

$534.92 - $534.92

$534.92

Banjo® Liquid Handling Products
EVX Bolted Port Side Load Electric Valve | Full Port

Specifications for Variant SKU: EVX150BL Banjo
Series:	EVX Series
Shape (Orientation):	Tee
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. 1" & 1-1/4" ON/OFF has ¾ second response. 1-1/2" & 2" ON/OFF has 1-1/2" second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. On/Off Actuator rated to 500,000 cycles. Valve rated to 50,000 cycles leak-free. These bolted valves have the exact same dimensions as Banjo's legacy EV valves. Additional protocols available including CAN/ISO BUS.
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Repair Kit
EVX075BL	3/4" Full Port Bottom Load Electric Valve	300 PSI	3/4"	1"	1	VP20153SH	EVX10200
EVX100BL	1" Full Port Bottom Load Electric Valve	300 PSI	1"	1"	1	VP20153SH	EVX10200
EVX125BL	1-1/4" Full Port side Load Electric Valve	250 PSI	1-1/4"	1"	1	VP20153SH	EVX10200
EVX150BL	1-1/2" Full Port side Load Electric Valve	250 PSI	1-1/2"	1-1/2"	1	VP20153SH	EVX20200
EVX200BL	2" Standard Port Bottom Load Electric Valve	250 PSI	2"	1-1/2"	1	VP20153	EVX20200
EVX220BL	2" Full Port Bottom Load Electric Valve	125 PSI	2"	2"	1	VP20153	EVX25200

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
