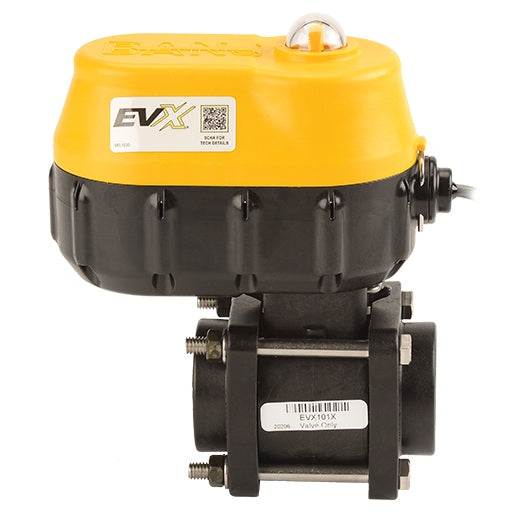

EVXR101 by Banjo | EVX Regulating Bolted Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $136.80

$478.80

$478.80 - $478.80

$478.80

$342.00

$342.00 - $342.00

$342.00

Banjo® Liquid Handling Products
EVX Regulating Bolted Electric Valve | Full Port

Specifications for Variant SKU: EVXR101 Banjo
Series:	EVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated 24-volt available Open/closed indicator 3/4"-1-1/4" ON/OFF has 3/4 sec response 1-1/2" ON/OFF has 1-1/2 sec response Regulating has 4 sec response Open/Close verification wires available IP68 waterproof -0 to 150F (-18 to 65C) operating -67 to 221F (-55 to 105C) storage On/Off Actuator rated to 500,000 cycles Regulating Actuator rated to 250,000 cycles Valve rated to 50,000 cycles leak-free Bolted valves have the same exact dimensions as our legacy EV valves. Additional protocols available including CAN/ISO BUS
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Repair Kit
EVXR071	3/4" Full Port Electric Valve	300 PSI	3/4"	1"	VP20153SH	EVX10200
EVXR101	1" Full Port Electric Valve	300 PSI	1-1/4"	1"	VP20153SH	EVX10200
EVXR151	1-1/2" Full Port Electric Valve	250 PSI	1-1/2"	1-1/2"	VP20153SH	EVX20200

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
