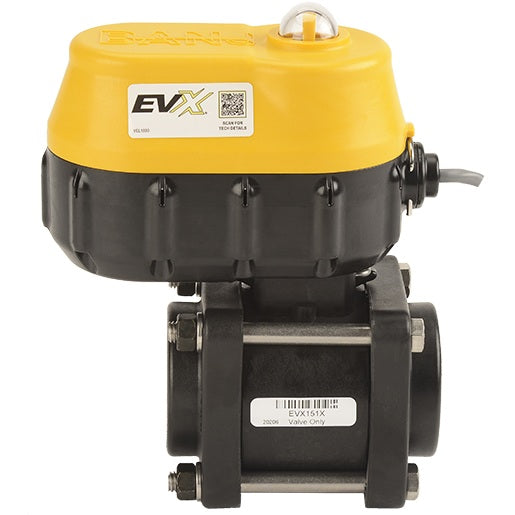

EVXR151 by Banjo | EVX Regulating Bolted Electric Valve | Full Port | 1-1/2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

EVXR151 by Banjo | EVX Regulating Bolted Electric Valve | Full Port | 1-1/2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

Save $67.35 Save $67.35
$560.46
$560.46 - $560.46
$560.46
$493.11
$493.11 - $493.11
$493.11

Banjo® Liquid Handling Products
EVX Regulating Bolted Electric Valve | Full Port
Specifications for Variant SKU: EVXR151 Banjo
Series: EVX Series
Shape (Orientation): Straight
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Features:
  • 12-volt DC operated
  • 24-volt available
  • Open/closed indicator
  • 3/4"-1-1/4" ON/OFF has 3/4 sec response
  • 1-1/2" ON/OFF has 1-1/2 sec response
  • Regulating has 4 sec response
  • Open/Close verification wires available
  • IP68 waterproof
  • -0 to 150F (-18 to 65C) operating
  • -67 to 221F (-55 to 105C) storage
  • On/Off Actuator rated to 500,000 cycles
  • Regulating Actuator rated to 250,000 cycles
  • Valve rated to 50,000 cycles leak-free
  • Bolted valves have the same exact dimensions as our legacy EV valves.
  • Additional protocols available including CAN/ISO BUS
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Handle
Kit		 Repair
Kit
EVXR071 3/4" Full Port Electric Valve 300 PSI 3/4" 1" VP20153SH EVX10200
EVXR101 1" Full Port Electric Valve 300 PSI 1-1/4" 1" VP20153SH EVX10200
EVXR151 1-1/2" Full Port Electric Valve 250 PSI 1-1/2" 1-1/2" VP20153SH EVX20200

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
