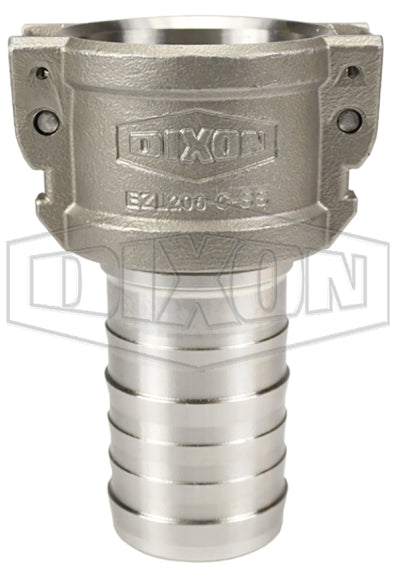

EZL200-C-SS by Dixon Valve | EZLink® Armless Cam & Groove Coupler | King Crimp Hose Shank | Type C | 2" Coupler x 2" Hose Shank | 316 Stainless Steel

Save $62.33

$155.82

$155.82 - $155.82

$155.82

$93.49

$93.49 - $93.49

$93.49

Dixon Valve
EZLink® Armless Cam & Groove | Type C Coupler | King Crimp Hose Shank | Coupler x Hose Shank

Automatic couplers push-to-connect, providing a reliable connection.

Specifications for Variant SKU: EZL200-C-SS Dixon
Brand:	EZLink, King Crimp
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	2in Female Cam & Groove, 2in Hose Barb
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Applications:
Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks. Transfer of liquids compatible with the available coupling and gasket materials.
Features:
Low profile allows easy connection and disconnection in tight applications. Coupler push tabs can be locked with safety pins and/or zip tie. Compatible with standard cam & groove adapters. Lifetime warranty on stainless steel tabs.
Materials:
Couplings and dust caps: A356 aluminum, 316 stainless steel. Coupler tabs and springs: 316 stainless steel. Gasket: nitrile rubber.
Specifications:
Maximum working pressure with King Crimp® ferrules: 2" 250 PSI, 3" and 4" 150 PSI Maximum working pressure with crimp sleeves: 2" 250 PSI, 3" 125 PSI, 4" 110 PSI Maximum working pressure with band clamps: 2" 250 PSI, 3" 125 PSI, 4" 100 PSI Gasket temperature range: 5°F to 180°F (-15°C to 82°C)
Note:
Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.

A356 Aluminum Part Number	316 Stainless Steel Part Number	Size
EZL150-C-AL	EZL150-C-SS	1-1/2"
EZL200-C-AL	EZL200-C-SS	2"
EZL300-C-AL	EZL300-C-SS	3"
EZL400-C-AL	-	4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
