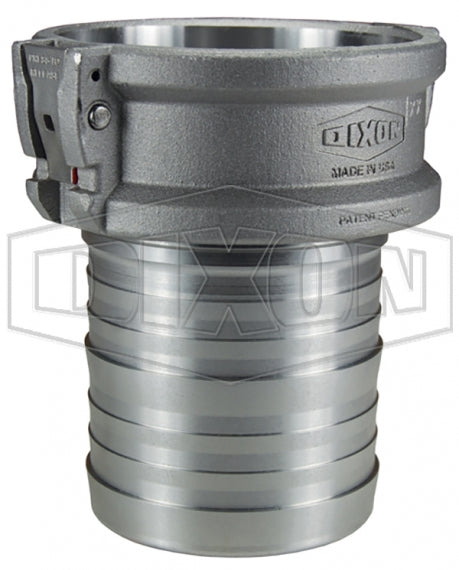

EZL400-C-AL by Dixon Valve | EZLink® Armless Cam & Groove Coupler | King Crimp Hose Shank | Type C | 4" Coupler x 4" Hose Shank | Aluminum

EZL400-C-AL by Dixon Valve | EZLink® Armless Cam & Groove Coupler | King Crimp Hose Shank | Type C | 4" Coupler x 4" Hose Shank | Aluminum

Save $40.81 Save $40.81
$102.02
$102.02 - $102.02
$102.02
$61.21
$61.21 - $61.21
$61.21

Dixon Valve
EZLink® Armless Cam & Groove | Type C Coupler | King Crimp Hose Shank | Coupler x Hose Shank

Automatic couplers push-to-connect, providing a reliable connection.
Specifications for Variant SKU: EZL400-C-AL Dixon
Brand: EZLink, King Crimp
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Transfer and/or unloading of fuels (gasoline or diesel) from tank truck to storage tanks.
  • Transfer of liquids compatible with the available coupling and gasket materials.
Features:
  • Low profile allows easy connection and disconnection in tight applications.
  • Coupler push tabs can be locked with safety pins and/or zip tie.
  • Compatible with standard cam & groove adapters.
  • Lifetime warranty on stainless steel tabs.
Materials:
  • Couplings and dust caps: A356 aluminum, 316 stainless steel.
  • Coupler tabs and springs: 316 stainless steel.
  • Gasket: nitrile rubber.
Specifications:
  • Maximum working pressure with King Crimp® ferrules: 2" 250 PSI, 3" and 4" 150 PSI
  • Maximum working pressure with crimp sleeves: 2" 250 PSI, 3" 125 PSI, 4" 110 PSI
  • Maximum working pressure with band clamps: 2" 250 PSI, 3" 125 PSI, 4" 100 PSI
  • Gasket temperature range: 5°F to 180°F (-15°C to 82°C)
Note:
  • Only use EZLink gaskets and tabs for this coupling system. Traditional cam & groove handles and gaskets, or other types of seals, are not compatible and will fail.
A356 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
EZL150-C-AL EZL150-C-SS 1-1/2"
EZL200-C-AL EZL200-C-SS 2"
EZL300-C-AL EZL300-C-SS 3"
EZL400-C-AL - 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
