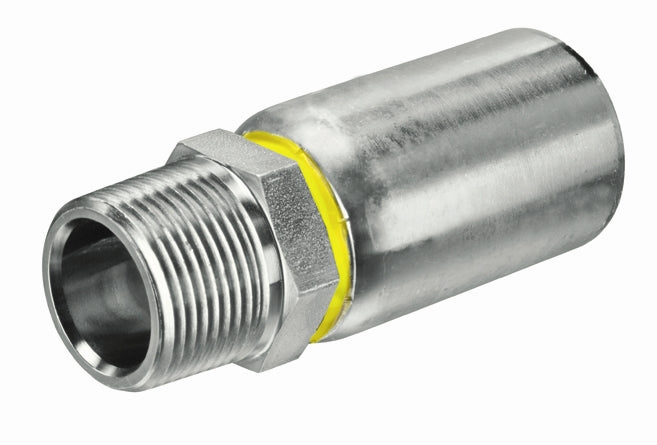

F02NPT2 Alfagomma Piranhaflex™ by Kuriyama | F Series | One-Piece Sewer & Lateral Line Hose Fitting | -02 Hose ID x -02 Male NPTF 60° Seat | Steel

F02NPT2 Alfagomma Piranhaflex™ by Kuriyama | F Series | One-Piece Sewer & Lateral Line Hose Fitting | -02 Hose ID x -02 Male NPTF 60° Seat | Steel

Save $1.25 Save $1.25
$4.38
$4.38 - $4.38
$4.38
$3.13
$3.13 - $3.13
$3.13

Kuriyama of America Inc.
Alfagomma | F Series | One-Piece Sewer & Lateral Line Hose Fitting | Hose Barb x Male NPTF 60° Seat
Specifications for Variant SKU: F02NPT2 Kuriyama
Brand: Alfagomma, Piranhaflex
Series: F Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Hose Barb, 1/8in Male NPTF
Material(s): Steel
Compatible with the following Series: E4K Series  |   E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   Flexor Rig Series
About F-Series Fittings:
  • One-piece non-skive crimp fitting for:
    • Alfabiotech 4000 2" ID.
    • Alfabiotech 5000 3/4" ID thru 2" ID.
    • Alfabiotech 6000 3/4" thru 1-1/4".
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) x TPI		 (mm) (mm) lbs/each
F02NPT2 02 1/8" 3.2mm 02 1/8-27 18.8mm 12.7mm 0.035 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
