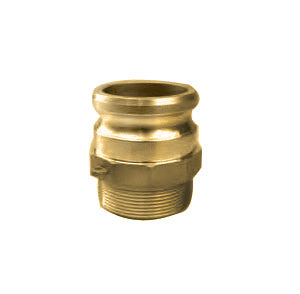

F125B by Jason Industrial | 1-1/4" Cam and Groove | Part F | Male Adapter x Male NPT Thread | Brass

F125B by Jason Industrial | 1-1/4" Cam and Groove | Part F | Male Adapter x Male NPT Thread | Brass

Save $15.26 Save $15.26
$22.34
$22.34 - $22.34
$22.34
$7.08
$7.08 - $7.08
$7.08

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part F - Male Adapter x Male NPT Thread - Brass
Specifications for Variant SKU: F125B Jason
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1-1/4in Male Cam & Groove, 1-1/4in Male NPT
Material(s): Brass
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Male end fits female coupler or Dust Cap.
  • Male end thread is NPT.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • Brass body has high tensile strength and rigidity.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which prevent disconnection during use.
Material Specs:
  • Brass material meets ASTM B584 Grade C85700 specs.
  • 304 Type stainless steel handles and pull rings.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Brass handles are forged.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
F075B 3/4" 250 PSI
F100B 1" 250 PSI
F125B 1-1/4" 250 PSI
F150B 1-1/2" 250 PSI
F200B 2" 250 PSI
F250B 2-1/2" 150 PSI
F300B 3" 125 PSI
F400B 4" 100 PSI
F600B 6" 75 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
