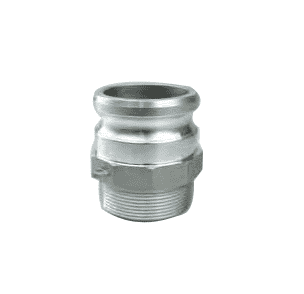

F125S by Jason Industrial | 1-1/4" Cam and Groove | Part F | Male Adapter x Male NPT Thread | 304 Stainless Steel

F125S by Jason Industrial | 1-1/4" Cam and Groove | Part F | Male Adapter x Male NPT Thread | 304 Stainless Steel

Save $0.18 Save $0.18
$18.74
$18.74 - $18.74
$18.74
$18.56
$18.56 - $18.56
$18.56

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part F - Male Adapter x Male NPT Thread - 304 Stainless Steel
Specifications for Variant SKU: F125S Jason
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1-1/4in Male Cam & Groove, 1-1/4in Male NPT
Material(s): 304 Stainless Steel
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Male end fits female coupler or Dust Cap.
  • Male end thread is NPT.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • Chemical composition of the alloy is analyzed on every melt.
  • Especially capable for chemical and food applications.
Material Specs:
  • Coupling body material meets ASTM A666 304 stainless steel specifications.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
F050S 1/2" 150 PSI
F075S 3/4" 250 PSI
F100S 1" 250 PSI
F125S 1-1/4" 250 PSI
F150S 1-1/2" 250 PSI
F200S 2" 250 PSI
F250S 2-1/2" 150 PSI
F300S 3" 125 PSI
F400S 4" 100 PSI
F600S 6" 75 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
