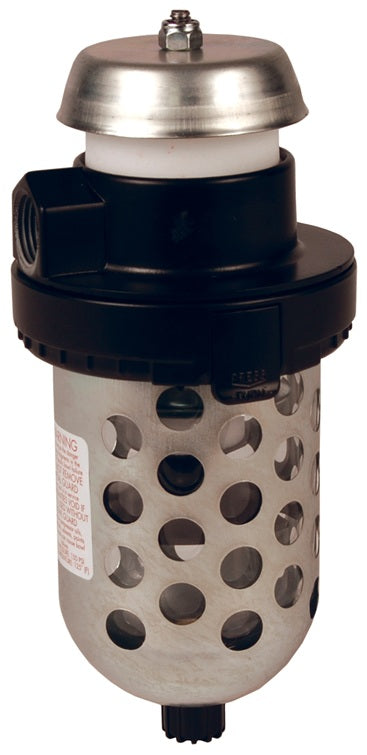

F23-04M Wilkerson by Dixon Valve | F23-Series | Exhaust Muffler | 1/2" Size | 240 SCFM | Transparent Bowl with Guard

Save $123.95

$309.87

$309.87 - $309.87

$309.87

$185.92

$185.92 - $185.92

$185.92

Dixon Valve
Wilkerson | F23-Series | Exhaust Muffler

Removes oily aerosols from exhaust flows.

The contaminants in the exhaust flow are mechanically separated and twice filtered to 5 micron levels, the clean, muffled exhaust flows out of the unit under the metal hood on top.

Specifications for Variant SKU: F23-04M Dixon
Brand:	Wilkerson
Series:	F23-Series

Features:
One inlet port. 5 micron element. Quick disconnect clamp ring for easy bowl removal. Manual drain.
Specifications:
Operating Maximum Pressure: 150 PSIG (10.3 bar) Operating Temperature Range: 32°F to 125°F (0°C to 52°C) Designed for air service only, unless otherwise indicated.
Dimensions:

Transparent Bowl with Guard Part Number	Size	Flow at 90 PSI
F23-04M	1/2"	240 SCFM
