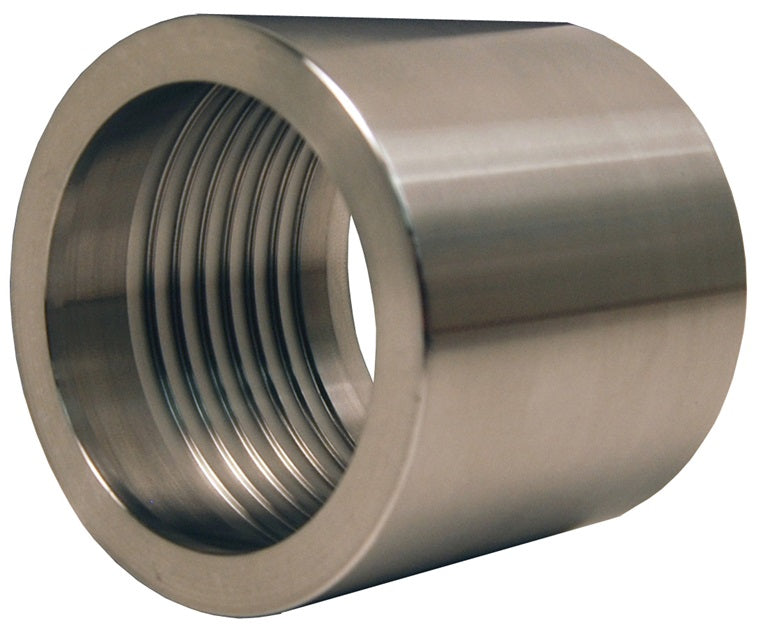

F32G-2531 by Dixon Valve | Sanitary Crimp Ferrule | 2" Hose ID | Hose OD: From 2-30/64" to 2-33/64" | AISI 304 Stainless Steel

F32G-2531 by Dixon Valve | Sanitary Crimp Ferrule | 2" Hose ID | Hose OD: From 2-30/64" to 2-33/64" | AISI 304 Stainless Steel

Save $5.62 Save $5.62
$50.61
$50.61 - $50.61
$50.61
$44.99
$44.99 - $44.99
$44.99

Dixon Valve
Sanitary Crimp Ferrule

Recommended for food, dairy and pharmaceutical applications where increased flow capacity is important.
Specifications for Variant SKU: F32G-2531 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Construction:
  • AISI 304 Stainless Steel.
  • Ferrules have a surface finish of 63 or better.
Safety Notes:
  • Dixon Sanitary Crimp ferrules are to be used with Dixon Sanitary crimp stems only.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
AISI 304 Stainless Steel
Part Number		 Hose
I.D.		 Hose O.D.
From To
F16G-1453 1" 1-26/64" 1-28/64"
F16G-1500 1" 1-29/64" 1-31/64"
F16G-1547 1" 1-32/64" 1-34/64"
F16G-1594 1" 1-35/64" 1-37/64"
F16G-1641 1" 1-38/64" 1-40/64"
F16G-1687 1" 1-41/64" 1-43/64"
F16G-1734 1" 1-44/64" 1-46/64"
F16G-1781 1" 1-47/64" 1-49/64"
F24G-1969 1-1/2" 1-58/64" 1-61/64"
F24G-2031 1-1/2" 1-62/64" 2-1/64"
F24G-2094 1-1/2" 2-2/64" 2-5/64"
F24G-2156 1-1/2" 2-6/64" 2-9/64"
F24G-2219 1-1/2" 2-10/64" 2-13/64"
F24G-2281 1-1/2" 2-14/64" 2-17/64"
F24G-2344 1-1/2" 2-18/64" 2-21/64"
F24G-2406 1-1/2" 2-22/64" 2-25/64"
F32G-2531 2" 2-30/64" 2-33/64"
F32G-2594 2" 2-34/64" 2-37/64"
F32G-2656 2" 2-38/64" 2-41/64"
F32G-2791 2" 2-42/64" 2-45/64"
F32G-2766 2" 2-46/64" 2-48/64"
F32G-2815 2" 2-49/64" 2-51/64"
F32G-2875 2" 2-52/64" 2-55/64"
F32G-2938 2" 2-56/64" 2-59/64"
F32G-3000 2" 2-60/64" 2-63/64"
F32G-3063 2" 3" 3-3/64"
F32G-3125 2" 3-4/64" 3-7/64"
F40G-3063 2-1/2" 3" 3-3/64"
F40G-3125 2-1/2" 3-4/64" 3-7/64"
F40G-3188 2-1/2" 3-8/64" 3-11/64"
F40G-3250 2-1/2" 3-12/64" 3-15/64"
F40G-3313 2-1/2" 3-16/64" 3-19/64"
F40G-3375 2-1/2" 3-20/64" 3-23/64"
F40G-3437 2-1/2" 3-24/64" 3-26/64"
F48G-3625 3" 3-36/64" 3-39/64"
F48G-3688 3" 3-40/64" 3-43/64"
F48G-3750 3" 3-44/64" 3-47/64"
F48G-3813 3" 3-48/64" 3-51/64"
F48G-3875 3" 3-52/64" 3-55/64"
F48G-3938 3" 3-56/64" 3-59/64"
F48G-4016 3" 3-61/64" 4"
F64G-4688 4" 4-40/64" 4-43/64"
F64G-4750 4" 4-44/64" 4-47/64"
F64G-4813 4" 4-48/64" 4-51/64"
F64G-4875 4" 4-52/64" 4-55/64"
F64G-4938 4" 4-56/64" 4-59/64"
F64G-5141 4" 5-5/64" 5-8/64"
