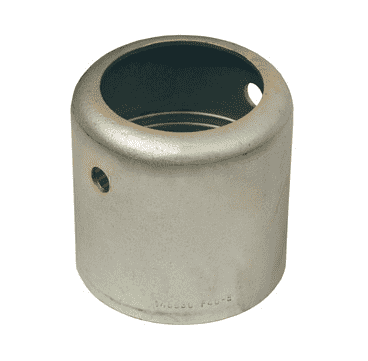

F64-8 Dixon 4" Plated Carbon Steel Style F Standard External Swage Ferrule - Hose OD from 5-29/64" to 5-36/64"

F64-8 Dixon Valve 4" Plated Carbon Steel Style F Standard External Swage Ferrule - Hose OD from 5-29/64" to 5-36/64"

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Holedall External Swage Ferrules - Style F - Standard - 4" - Plated Carbon Steel
Specifications for Variant SKU: F64-8 Dixon
Shape (Orientation): No Orientation
Material(s): Plated Carbon Steel
Applications:
  • Recommended for use on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as: oil and suction discharge hose, barge and dock loading and unloading hose as well as L.P. gas hose, anhydrous ammonia hose, acid chemical hose and air and water hose.
  • Style F ferrules are used with all standard length External Swage stems: TM, TMR, TP, TPR, TG and TGR styles.
Features:
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • The Holedall coupling provides long-lasting efficiency and safety.
Safety Notes:
  • The selection of ferrules is very important to achieve proper coupling-to-hose assembly.
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Weight (Lbs.)
F64-Z* 4" 4-30/64" 4-39/64" 2.4900
F64-1 4" 4-40/64" 4-44/64" 4.0800
F64-2 4" 4-45/64" 4-52/64" 2.8900
F64-3 4" 4-53/64" 4-60/64" 4.2300
F64-4 4" 4-61/64" 5-4/64" 3.0400
F64-5 4" 5-5/64" 5-12/64" 4.6650
F64-6 4" 5-13/64" 5-20/64" 3.0620
F64-7 4" 5-21/64" 5-28/64" 5.0000
F64-8 4" 5-29/64" 5-36/64" 3.0620

* Requires special stem
