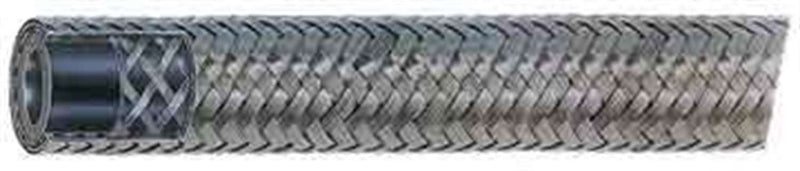

FBA1600 Eaton Aeroquip® -16 AQP® Racing Hose with Stainless Steel Cover

Original price $21.41 - Original price $21.41
Original price $21.41
$22.35
$22.35 - $22.35
Current price $22.35

Eaton Aeroquip® High Performance
AQP® Racing Hose with Stainless Steel Cover

The most popular racing hose in the market for over 60 years - made in the U.S.A.

AQP Racing Hose is compatible with petroleum and synthetic lubricants, hydrocarbon fuels and liquid engine coolants. It operates at higher temperatures for longer periods. Light and flexible, it is easy to work with, and its stainless steel cover will ensure long-lasting durability.

AQP Racing Hose also features an AQP elastomer inner tube that is resistant to oxidation, the effects of ozone and other various agents present in the air. Changes in physical properties due to shelf aging are nonexistent.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FBA1600 Eaton HP
Brand: Aeroquip Performance Products
Series: AQP® Racing Hose
Hose Color(s): Metallic
Internal Diameter: 0.88in
Outer Diameter: 1.15in
Tubing Construction: AQP Elastomer
Cover Construction: Stainless Steel Braid

SPECIFICATIONS

Application: Fuel, lube, coolant, air SAE Rating: N/A
Other Ratings: N/A Tube: AQP elastomer
Reinforcement: Partial stainless steel wire inner braid reinforcement. Cover: Full stainless steel outer braid reinforcement
Temperature Range: Continuous operating temperature from -55°F to +300°F (-49°C to +150°C). Crimp Fittings: AQP® Racing Hose Crimp Fittings
Reusable Fittings: AQP® Racing Hose Reusable Fittings
Bulk Part Number Hose Dash Size Hose ID
(in)
Max. Hose OD
(in)
Max. Operating Pressure
(PSI)
Bend Radius
(in)
Weight Per Foot
(lbs)
Vacuum Service
(in/Hg)
FBA0400 -04 0.22" 0.44" 1000/750 PSI 2.00" 0.11 lbs 21 in/Hg
FBA0600 -06 0.34" 0.55" 1000/750 PSI 2.50" 0.16 lbs 21 in/Hg
FBA0800 -08 0.44" 0.65" 1000/750 PSI 3.50" 0.17 lbs 21 in/Hg
FBA1000 -10 0.56" 0.80" 1000/750 PSI 4.00" 0.21 lbs 28 in/Hg
FBA1200 -12 0.69" 0.94" 1000/750 PSI 4.50" 0.29 lbs 28 in/Hg
FBA1600 -16 0.88" 1.15" 750/750 PSI 5.50" 0.38 lbs 28 in/Hg
FBA2000 -20 1.13" 1.41" 500 PSI 8.00" 0.49 lbs 21 in/Hg
FBA2400 -24 1.34" 1.70" 50 PSI 9.00" 0.80 lbs 21 in/Hg
FBA3200 -32 1.75" 2.09" 50 PSI 12.50" 0.98 lbs 15 in/Hg

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Danfoss High Performance

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
