FBM1074 Eaton Aeroquip® -04 Quick-Disconnect Hydraulic Brake and Clutch Coupling - Steel

FBM1074 Eaton Aeroquip® -04 Quick-Disconnect Hydraulic Brake and Clutch Coupling - Steel

$152.96 - $152.96
$152.96
$159.60
$159.60 - $159.60
$159.60

Eaton Aeroquip® High Performance
Quick-Disconnect Hydraulic Brake and Clutch Coupling

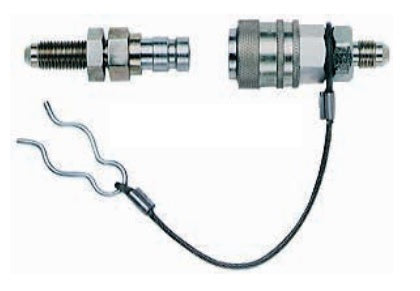

This coupling allows rapid connection/disconnection of brake and clutch lines without fluid loss, air inclusion and the need to bleed the line. It also includes a safety clip on the lanyard to prevent accidental disconnection. The male half includes a jam nut for bulkhead mounting.

Threads are S.A.E. 37° (JIC/AN).

Temperature range -40°F to +250°F.

For use with nonpetroleum brake fluids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FBM1074 Eaton HP
Shape (Orientation): Straight
Material(s): Steel

Quick-Disconnect Hydraulic Brake and Clutch Couplings & Replacement Parts
Steel
Part Number		 Description Hose Fitting
Dash Size		 Max. Operating
Pressure		 Air Inclusion
(C.C. Max.)		 Fluid Loss
(C.C. Max)		 Length Connector Total Weight
FBM1073 Complete Coupling -03 3000 PSI 0.02 0.10 4.10" 0.34 lbs
FBM1074 Complete Coupling -04 3000 PSI 0.02 0.10 4.25" 0.36 lbs
Replacement Parts
FBM1115 Male Half (Bulkhead Mount) -03
FBM1116 Male Half (Bulkhead Mount) -04
FBM1117 Female Half -03
FBM1118 Female Half -04

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Danfoss High Performance

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
