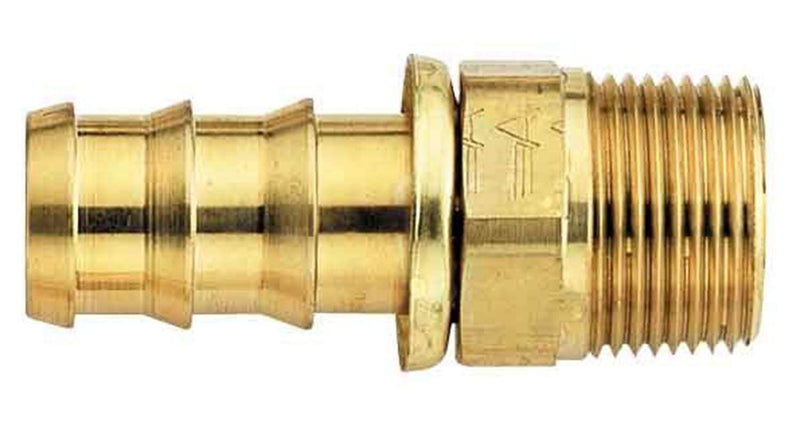

FBM1207 Eaton Aeroquip® -06 SOCKETLESS™ Male Pipe Straight Fitting - 1/4" Thread - Brass

Name: FBM1207 Eaton Aeroquip® -06 SOCKETLESS™ Male Pipe Straight Fitting - 1/4" Thread - Brass
Brand: Eaton High Performance
SKU: FBM1207 Eaton HP
Price: 4.05 USD
Availability: InStock

$3.81 - $3.81

$3.81

$4.05

$4.05 - $4.05

$4.05

Eaton Aeroquip® High Performance
Straight Male Pipe Fitting for AQP® SOCKETLESS™ Racing Hose

Quantity

Specifications for Variant SKU: FBM1207 Eaton HP
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 3/8in Hose Barb
Material(s):	Brass

Aluminum SOCKETLESS™ Racing Hose Fittings Features:
Easy to assemble, no wrench or clamp required. One-piece design allows for improved flow, and eliminates two potential leak points (brazed joints).

Straight Fittings
Hose Size	SOCKETLESS™ Black Anodized Aluminum S.A.E. 37° (JIC/AN) Part Number	SOCKETLESS™ Red/Blue Anodized Aluminum S.A.E. 37° (JIC/AN) Part Number	SOCKETLESS™ Nickel-Plated Aluminum S.A.E. 37° (JIC/AN) Part Number	SOCKETLESS™ Brass Male Pipe Part Number	SOCKETLESS™ Brass Male Flare S.A.E. 37° (JIC/AN) Part Number	SOCKETLESS™ Brass Swivel S.A.E. 37° (JIC/AN) Part Number	SOCKETLESS™ Brass Male Inverted Flare Part Number	SOCKETLESS™ Brass Female Flare Part Number
Hose Size
-04	-	-	-	FBM1200 (1/8" Thread) FBM1201 (1/4" Thread)	FBM1444	FBM1231*	FBM1211	-
-06	FBL1512 (FCL1512)	FBM1512 (FCM1512)	FBE1512 (FCE1512)	FBM1207 (1/4" Thread) FBM1202 (3/8" Thread)	FBM1445	FBM1222	FBM1212	FBM1232* (3/4-16" Thread)
-08	FBL1513 (FCL1513)	FBM1513 (FCM1513)	FBE1513 (FCE1513)	FBM1206 (3/8" Thread) FBM1203 (1/2" Thread)	-	FBM1233*	FBM1213	-
-10	FBL1514 (FCL1514)	FBM1514 (FCM1514)	FBE1514 (FCE1514)	FBM1204 (1/2" Thread)	-	FBM1234*	FBM1214	-
-12	FBL1515 (FCL1515)	FBM1515 (FCM1515)	FBE1515 (FCE1515)	FBM1205 (3/4" Thread)	-	FBM1225	-	-

*These fittings mate with both 37° and 45° male flares.

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.

Compatible with:
AQP® SOCKETLESS™ Racing Hose

Danfoss High Performance

For more than 80 years, Aeroquip Performance Products has been the number one choice of racing enthusiasts around the world. We engineer and test each hose length and fitting to stringent factors of safety and our hoses and fittings are tested to work together as an assembly ensuring a proper fit. 100% of our hose is made in the USA and all of our fittings and adapters are distributed from our warehouse in Van Wert, OH.
