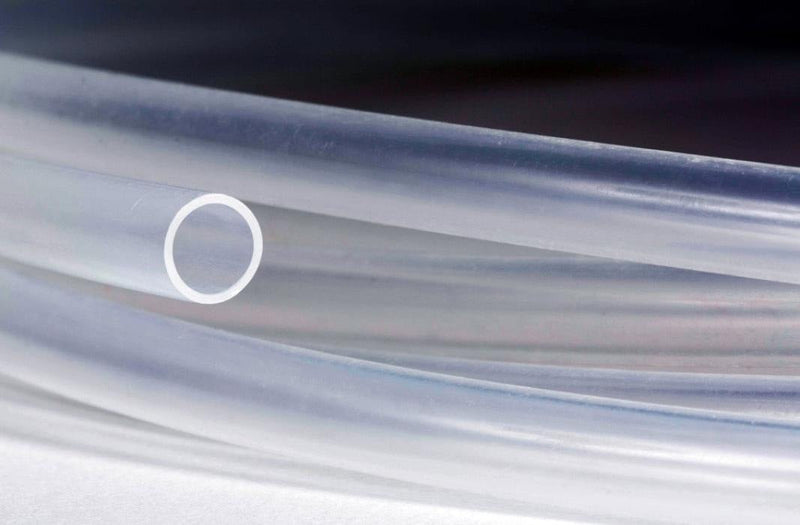

FBPFAF-0437-031-50 Versilon™ by Saint Gobain | PFA-F | High Purity Beverage Dispensing Tubing | 3/8" ID x 7/16" OD x .031" Wall | 50' Package Length

Minimum Order Quantity: 30 Packages

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Saint Gobain
Versilon® PFA-F | High Purity Beverage Dispensing Tubing

Versilon® PFA-F tubing from Saint-Gobain provides excellent chemical resistance and good diffusion-resistance.

No by the foot sales. This is a Packaged Length product.

Specifications for Variant SKU: FBPFAF-0437-031-50 Saint Gobain \| 50 \|
Brand:	Versilon
Series:	Versilon PFA-F
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.375in
Outer Diameter:	0.4375in
Tubing Construction:	Perfluoroalkoxy alkane
Applicable Specs & Approvals:	FDA 21 CFR Part 177.1550, Regulation (EC) No 1935/2004, Regulation (EU) No 10/2011

Fluoropolymer Flexible Tubing

Versilon® PFA-F | High Purity Beverage Dispensing Tubing

Saint-Gobain's stringent material quality control, state-of-the-art process control, and food and beverage regulatory compliance expertise are why food and beverage dispensing equipment manufacturers use Versilon® PFA-F tubing. Versilon® PFA-F tubing provides excellent chemical resistance and good diffusion-resistance.

1

What is this product used for?

Food and Beverage Dispensing Equipment

2

What are the key specifications?

Tube

PFA-F

Cover

PFA-F

Reinforcement

None

Colors

Natural

Maximum Recommended Operating Temp. °F (°C)

+500°F (+260°F)

Minimum Recommended Operating Temp. °F (°C)

-328°F (-200°F)

Specifications

Document of Compliance for Regulation (EU) No 10/2011 for specific grades
Document of Compliance for FDA Regulation 21 CFR 177.1550

WARNING:

Not intended as an implant material!

3

What are the main product features?

Excellent chemical resistance.
High resistance to stress cracking.
Temperature resistant up to +260°C.
Retains higher mechanical strength at elevated temperatures compared to FEP.

4

Which sizes or configurations are available?

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Min. Bend Radius (in.)	Calculated Burst Pressure at 73 deg. F (PSI)	Calculated Working Pressure at 73 deg. F (PSI)	Length
FBPFAF-0125-031-50	1/16"	1/8"	0.031" (1/32")	1/2"	1228 PSI	307 PSI	50ft
FBPFAF-0187-031-50	1/8"	3/16"	0.031" (1/32")	1-7/64"	796 PSI	199 PSI	50ft
FBPFAF-0250-031-50	3/16"	1/4"	0.031" (1/32")	1"	572 PSI	143 PSI	50ft
FBPFAF-0250-047-50	5/32"	1/4"	0.047" (3/64")	1-21/64"	908 PSI	227 PSI	50ft
FBPFAF-0250-062-50	1/8"	1/4"	0.062" (1/16")	1/2"	1236 PSI	309 PSI	50ft
FBPFAF-0312-031-50	1/4"	5/16"	0.031" (1/32")	1-3/4"	456 PSI	114 PSI	50ft
FBPFAF-0312-062-50	3/16"	5/16"	0.062" (1/16")	1-1/2"	968 PSI	242 PSI	50ft
FBPFAF-0375-031-50	5/16"	3/8"	0.031" (1/32")	2-1/2"	400 PSI	100 PSI	50ft
FBPFAF-0375-062-50	1/4"	3/8"	0.062" (1/16")	1"	800 PSI	200 PSI	50ft
FBPFAF-0437-031-50	3/8"	7/16"	0.031" (1/32")	-	-	-	50ft
FBPFAF-0500-031-50	7/16"	1/2"	0.031" (1/32")	4"	292 PSI	73 PSI	50ft
FBPFAF-0500-062-50	3/8"	1/2"	0.062" (1/16")	3-31/32"	576 PSI	144 PSI	50ft
FBPFAF-0562-031-50	1/2"	9/16"	0.031" (1/32")	-	-	-	50ft
FBPFAF-0625-062-50	1/2"	5/8"	0.062" (1/16")	3"	452 PSI	113 PSI	50ft
FBPFAF-0750-062-50	5/8"	3/4"	0.062" (1/16")	8-59/64"	400 PSI	100 PSI	50ft
FBPFAF-0875-062-50	3/4"	7/8"	0.062" (1/16")	-	-	-	50ft
FBPFAF-1000-062-50	7/8"	1"	0.062" (1/16")	15-7/8"	296 PSI	74 PSI	50ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Versilon® PFA-F Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
