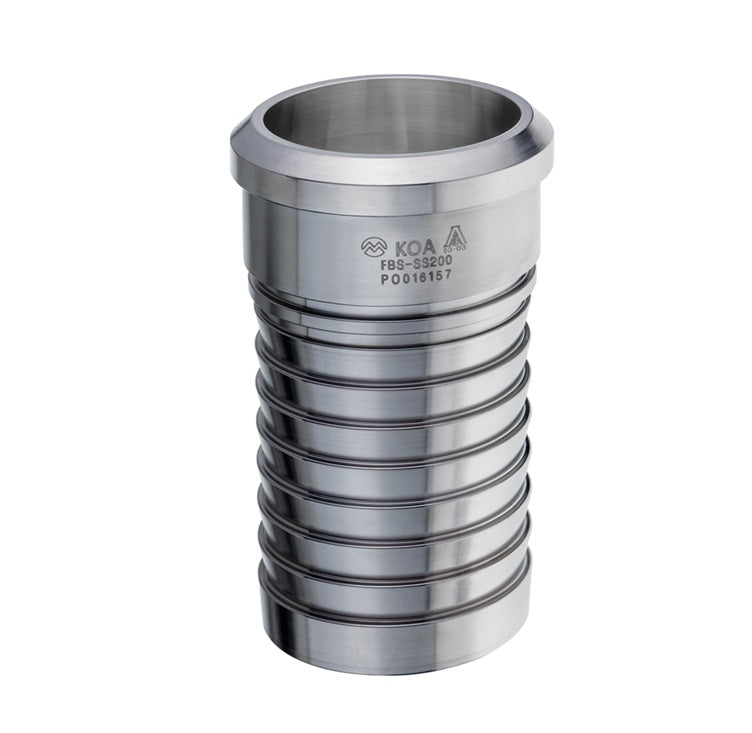

FBS-SS200 by Kuriyama | FBS-SS Series | Sanitary Crimp Hose Fitting | 2" Female Bevel Seat End x 2" Hose Barb | 316 Stainless Steel

FBS-SS200 by Kuriyama | FBS-SS Series | Sanitary Crimp Hose Fitting | 2" Female Bevel Seat End x 2" Hose Barb | 316 Stainless Steel

Save $15.40 Save $15.40
$99.52
$99.52 - $99.52
$99.52
$84.12
$84.12 - $84.12
$84.12

Kuriyama of America Inc.
Sanitary Bevel Seat Fitting | Female Bevel Seat x Hose Shank
Specifications for Variant SKU: FBS-SS200 Kuriyama
Series: FBS-SS Series
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Special Properties: Food Grade

What are the Features?

  • Durable 316 stainless steel.
  • Smooth 32 Ra food contact surface finish.
  • Certified to 3-A RPSCQC 62-02 for sanitary assemblies.
  • Designed for use with KOA sanitary and standard KuriCrimp Ferrules.
  • Uses Bevel Seat gaskets.
  • Uses HNS series hex nuts.
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
FBS-SS100 1" 690 PSI 0.33 lbs
FBS-SS150 1-1/2" 690 PSI 0.60 lbs
FBS-SS200 2" 690 PSI 0.95 lbs
FBS-SS250 2-1/2" 435 PSI 1.43 lbs
FBS-SS300 3" 435 PSI 2.38 lbs
FBS-SS400 4" 435 PSI 3.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
