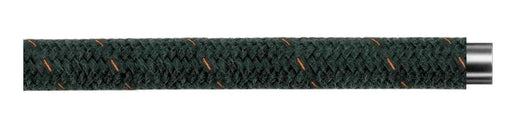

FBU1600 Eaton Aeroquip® -16 StartLite® Racing Hose

FBU1600 Eaton Aeroquip® -16 StartLite® Racing Hose

$17.94 - $17.94
$17.94
$18.72
$18.72 - $18.72
$18.72

Eaton Aeroquip® High Performance
StartLite® Racing Hose

The Professional's Choice. - 45% lighter than AQP® Racing Hose - made in the U.S.A.

Features:

  • Up to 45% lighter than stainless steel braided hose. For ultimate weight savings, select AQP lightweight crimp fittings.
  • Flame retardant Nomex* and Kevlar cover
  • AQP smooth bore inner tube
  • Flexible band radius
  • Race proven - approved by NASCAR, NHRA, IHRA, ADRL and other sanctioning bodies
  • Three to five times better abrasion protection
  • Fastest and easiest crimp machine on the market (FT1380)
  • Non-swivel and swivel crimp fittings (no phase angles to calculate)
  • Rated to 20 in/Hg or 28 in/Hg with stainless steel support coil
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FBU1600 Eaton HP
Brand: Aeroquip Performance Products
Series: StartLite
Hose Color(s): Black
Internal Diameter: 0.88in
Outer Diameter: 1.15in
Tubing Construction: AQP Elastomer
Cover Construction: Nomex/Kevlar Blend

SPECIFICATIONS

Application: Fuel, lube, coolant, air lines SAE Rating: N/A
Other Ratings: N/A Tube: AQP elastomer
Reinforcement: N/A Cover: Nomex* and Kevlar cover
Temperature Range: -45°F to +300°F (-43°C to +150°C). Crimp Fittings: StartLite® Racing Hose Crimp Fittings
Reusable Fittings: StartLite® Racing Hose Reusable Fittings-1
Bulk Part Number Hose Dash Size Hose ID
(in)		 Hose OD
(in)		 Max. Operating Pressure
(PSI)		 Min. Bend Radius
(in)		 Weight Per Foot
(lbs)		 Vacuum Service
(in/Hg)
FBU0400 -04 0.22" 0.43" 500 PSI 2.00" 0.05 lbs 20 in/Hg
FBU0600 -06 0.34" 0.55" 500 PSI 2.50" 0.08 lbs 20 in/Hg
FBU0800 -08 0.44" 0.64" 500 PSI 3.50" 0.09 lbs 20 in/Hg
FBU1000 -10 0.56" 0.80" 500 PSI 4.00" 0.14 lbs 20 in/Hg
FBU1200 -12 0.69" 0.93" 350 PSI 4.50" 0.16 lbs 20 in/Hg
FBU1600 -16 0.88" 1.15" 350 PSI 5.50" 0.19 lbs 20 in/Hg
FBU2000 -20 1.13" 1.41" 350 PSI 5.50" 0.25 lbs 20 in/Hg

*Nomex is a Dupont trademark.

Warning: Do not mix and match hose and fitting manufactures with your hose assemblies. Each manufacturer of hose and fittings builds their product to specific tolerances and does not recommend them for use with other brands. Doing this puts your performance at risk and voids any warranty on your product.
