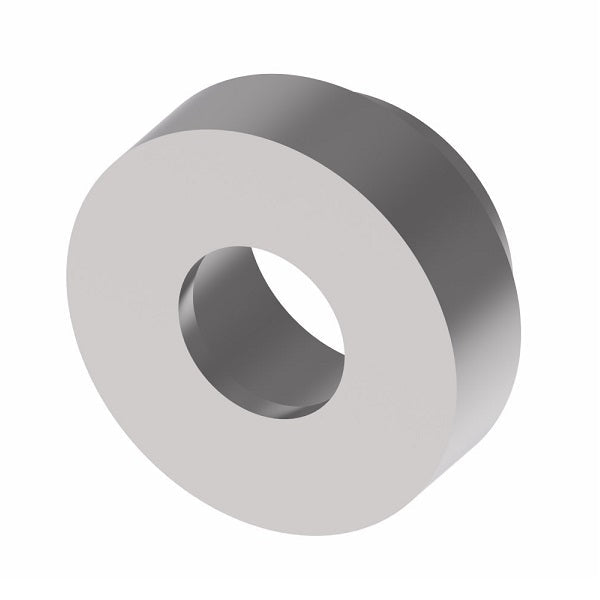

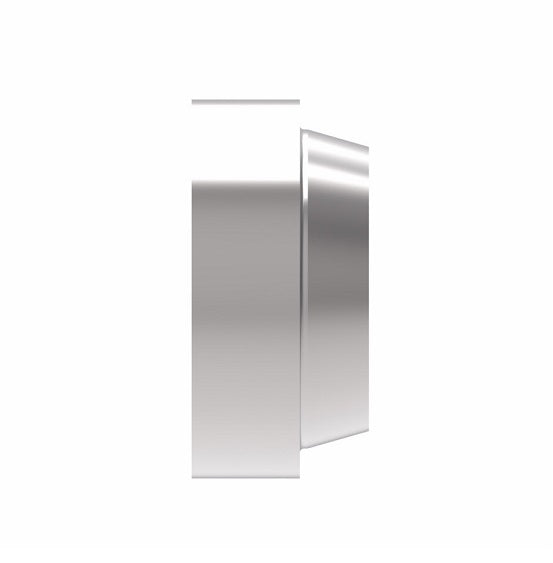

FC1229-0808S Aeroquip by Danfoss | ORS-BR Shoulder Internal Braze Adapter | -08 O-Ring Face Seal x -08 Braze End | Steel

Original price $3.49 - Original price $3.49
Original price
$3.49
$3.49 - $3.49
Current price $3.49

Aeroquip® by Danfoss
ORS-BR Shoulder Internal Braze Adapter
O-Ring Face Seal x Braze End

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.

Specifications for Variant SKU: FC1229-0808S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in O-Ring Face Seal, 1/2in Braze End
Material(s): Steel
Specifications:
  • Ref. SAE 520115
Construction:
  • Buna-N O-Rings are standard.
Warning:
  • In applications exceeding +480°F (such as during brazing) order the oil-coated/ non-plated nut by using part number FC1857- Size-186. When plating is heated above +480°F, toxic gases are given off.
Steel Part Number Brass Part Number Tube OD A B F
FC1229-0404S - 0.25" 0.29" 0.25" 0.25"
FC1229-0606S FC1229-0606B 0.38" 0.29" 0.25" 0.38"
FC1229-0808S FC1229-0808B 0.50" 0.42" 0.38" 0.50"
FC1229-1010S - 0.63" 0.42" 0.38" 0.62"
FC1229-1212S FC1229-1212B 0.75" 0.44" 0.38" 0.75"
- FC1229-1414B - - - -
FC1229-1612S - 1.00" 0.55" 0.38" 0.75"
- FC1229-1614B 1.00" 0.56" 0.44" 0.88"
FC1229-1616S - 1.00" 0.56" 0.50" 1.00"
FC1229-2020S - 1.25" 0.56" 0.50" 1.25"
FC1229-2424S - 1.50" 0.56" 0.50" 1.50"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.
