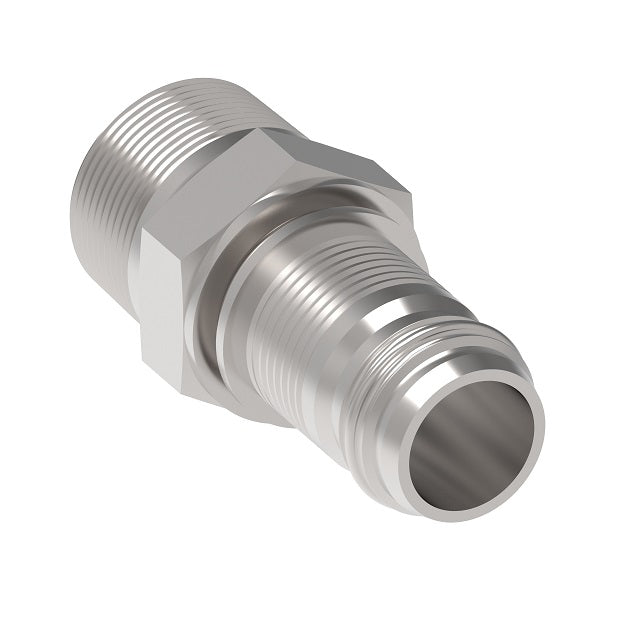

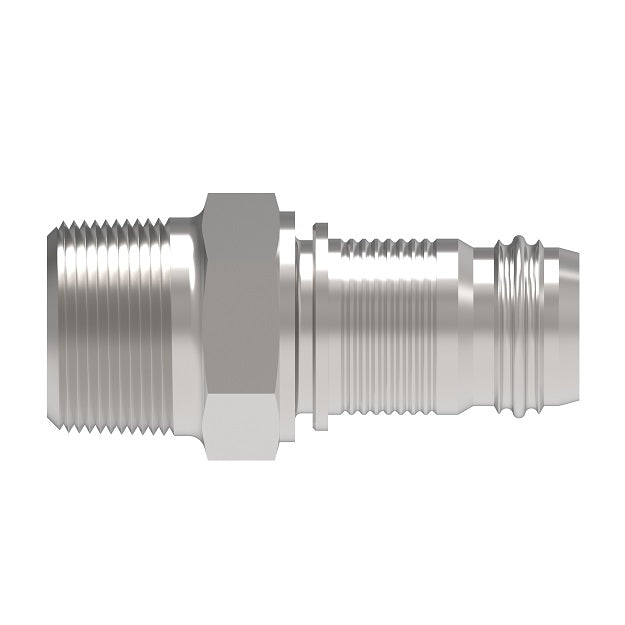

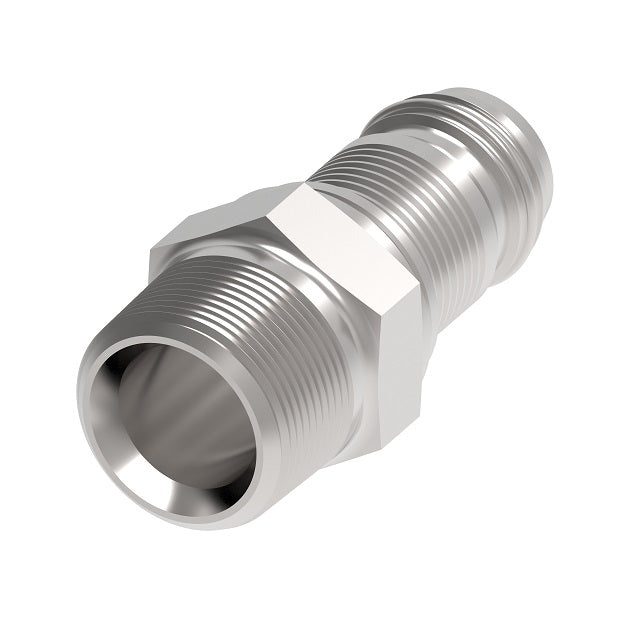

FC1349-0808-259 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Nipple Assembly | -08 Male Pipe x -08 Hose Barb | Stainless Steel

FC1349-0808-259 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Nipple Assembly | -08 Male Pipe x -08 Hose Barb | Stainless Steel

Name: FC1349-0808-259 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Nipple Assembly | -08 Male Pipe x -08 Hose Barb | Stainless Steel
Brand: Danfoss/Eaton
SKU: FC1349-0808-259 Danfoss
Price: 198.46 USD
Availability: InStock

$198.46 - $198.46

$198.46

$198.46 - $198.46

$198.46

Aeroquip® by Danfoss
Flat Crimp Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC1349-0808-259 Danfoss
Brand:	Aeroquip
Ends Configuration:	1/2in Male NPT, 1/2in Hose Barb
Material(s):	Stainless Steel
Compatible with the following Series:	FC363 Series \| FC364 Series \| FC563 Series


Complete Fitting Stainless Steel Part Number	Nipple Assembly Stainless Steel Part Number	Socket Stainless Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
-	FC1349-0808-259	FC1347-08-329	1/2-14	-08	2.54"	1.30"	.41"	.88"
FJ9588-1212-341	FC1349-1212-259	FC1347-12-329	3/4-14	-12	2.61"	1.37"	.61"	1.12"
FJ9588-1616-341	FC1349-1616-259	FC1347-16-329	1-11-1/2	-16	2.80"	1.55"	.81"	1.38"
-	FC1349-2020-259	FC1347-20-329	1-1/4-11-1/2	-20	2.95"	1.70"	1.05"	1.75"
FJ9588-2424-341	FC1349-2424-259	FC1347-24-329	1-1/2-11-1/2	-24	3.20"	1.74"	1.28"	2.00"
FJ9588-3232-341	FC1349-3232-259	FC1347-32-329	2-11-1/2	-32	3.46"	1.96"	1.75"	2.50"
