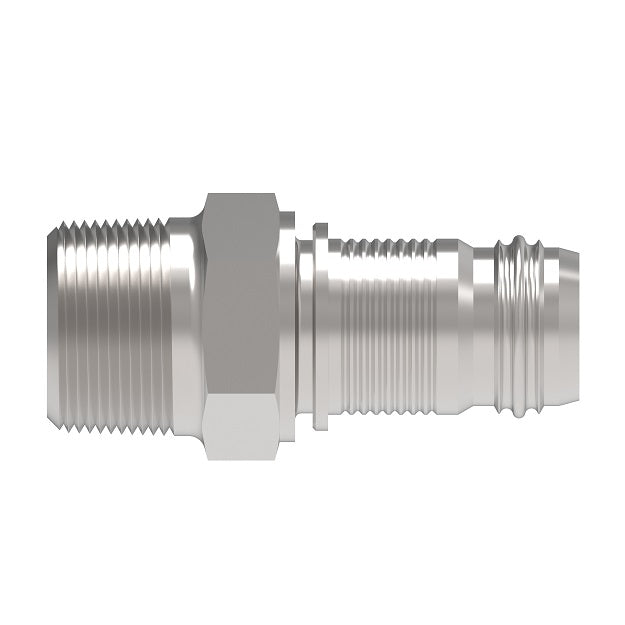

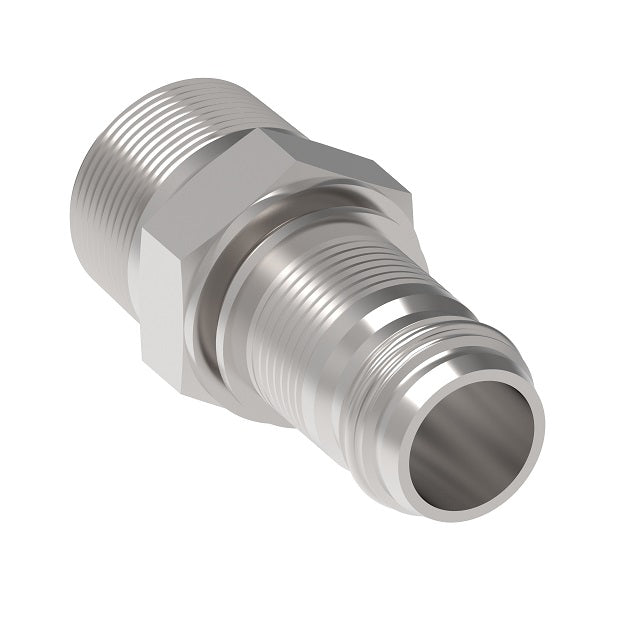

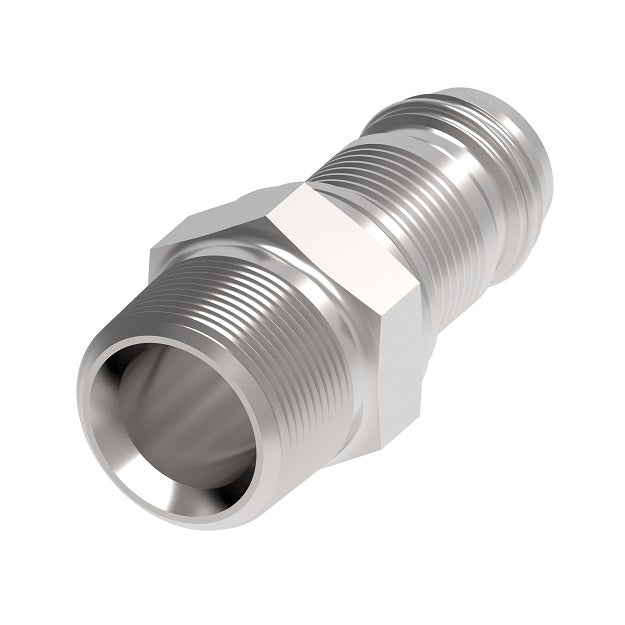

FC1349-1212-259 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Nipple Assembly | -12 Male Pipe x -12 Hose Barb | Stainless Steel

FC1349-1212-259 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Nipple Assembly | -12 Male Pipe x -12 Hose Barb | Stainless Steel

Name: FC1349-1212-259 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Nipple Assembly | -12 Male Pipe x -12 Hose Barb | Stainless Steel
Brand: Danfoss/Eaton
SKU: FC1349-1212-259 Danfoss
Price: 182.88 USD
Availability: InStock

$182.88 - $182.88

$182.88

$182.88 - $182.88

$182.88

Aeroquip® by Danfoss
Flat Crimp Fitting for PTFE Hose - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC1349-1212-259 Danfoss
Brand:	Aeroquip
Ends Configuration:	3/4in Male NPT, 3/4in Hose Barb
Material(s):	Stainless Steel
Compatible with the following Series:	FC363 Series \| FC364 Series \| FC563 Series


Complete Fitting Stainless Steel Part Number	Nipple Assembly Stainless Steel Part Number	Socket Stainless Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 2
-	FC1349-0808-259	FC1347-08-329	1/2-14	-08	2.54"	1.30"	.41"	.88"
FJ9588-1212-341	FC1349-1212-259	FC1347-12-329	3/4-14	-12	2.61"	1.37"	.61"	1.12"
FJ9588-1616-341	FC1349-1616-259	FC1347-16-329	1-11-1/2	-16	2.80"	1.55"	.81"	1.38"
-	FC1349-2020-259	FC1347-20-329	1-1/4-11-1/2	-20	2.95"	1.70"	1.05"	1.75"
FJ9588-2424-341	FC1349-2424-259	FC1347-24-329	1-1/2-11-1/2	-24	3.20"	1.74"	1.28"	2.00"
FJ9588-3232-341	FC1349-3232-259	FC1347-32-329	2-11-1/2	-32	3.46"	1.96"	1.75"	2.50"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
