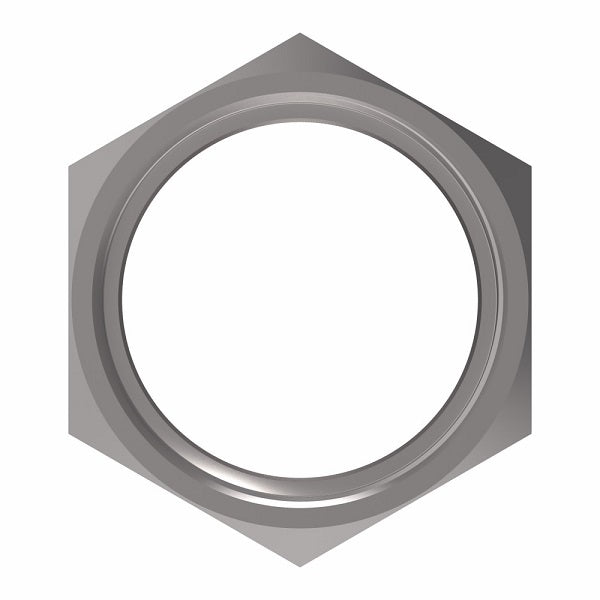

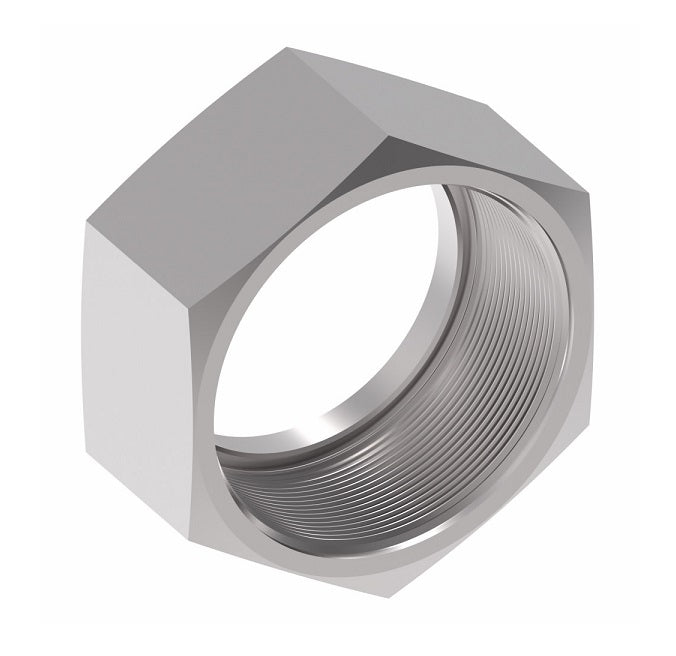

FC2326-08S Aeroquip by Danfoss | ORS/BR Nut Adapter | -08 Female O-Ring Face Seal x -08 Braze End | Steel

Save $0.16 Save $0.16
Original price $1.63
Original price $1.63 - Original price $1.63
Original price $1.63
Current price $1.47
$1.47 - $1.47
Current price $1.47

Aeroquip® by Danfoss
ORS/Braze Nut Adapter
Female O-Ring Face Seal x Braze End

(Formerly Eaton Aeroquip)

The ORS-TF tube fitting utilizing the ORS-TF nut, ferrule and sleeve can be joined directly to steel tubing to solve your fluid leakage problems. It does not require the time and expense of brazing and provides the advantage of repetitive reuse. It is a compression type fitting that works on a variety of tubing.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: FC2326-08S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1/2in Female O-Ring Face Seal X 1/2in Braze End
Material(s): Steel
Specifications:
  • Ref. SAE 520110
Construction:
  • Buna-N O-Rings are standard.
Warning:
  • In applications exceeding +480°F (such as during brazing) order the oil-coated/ non-plated nut by using part number FC1857- Size-186. When plating is heated above +480°F, toxic gases are given off.
Steel
Part Number
Brass
Part Number
Stainless Steel
Part Number
Tube OD Thread T A E Hex 1

FC2326-04S - - 0.25" 9/16-18 0.58" 0.41" 0.69"
FC2326-06S FC2326-06B FC2326-06-259 0.38" 11/16-16 0.67" 0.53" 0.81"
FC2326-08S FC2326-08B FC2326-08-259 0.50" 13/16-16 0.83" 0.65" 0.94"
FC2326-10S - FC2326-10-259 0.63" 1-14 0.92" 0.83" 1.12"
FC2326-12S - FC2326-12-259 0.75" 1-3/16-12 1.02" 0.95" 1.38"
- FC2326-1214B - 0.88" 1-3/16-12 1.22" 0.99" 1.38"
FC2326-16S FC2326-16B FC2326-16-259 1.00" 1-7/16-12 1.10" 1.14" 1.62"
FC2326-20S - - 1.25" 1-11/16-12 1.10" 1.42" 1.88"
FC2326-24S - - 1.50" 2-12 1.10" 1.73" 2.25"
