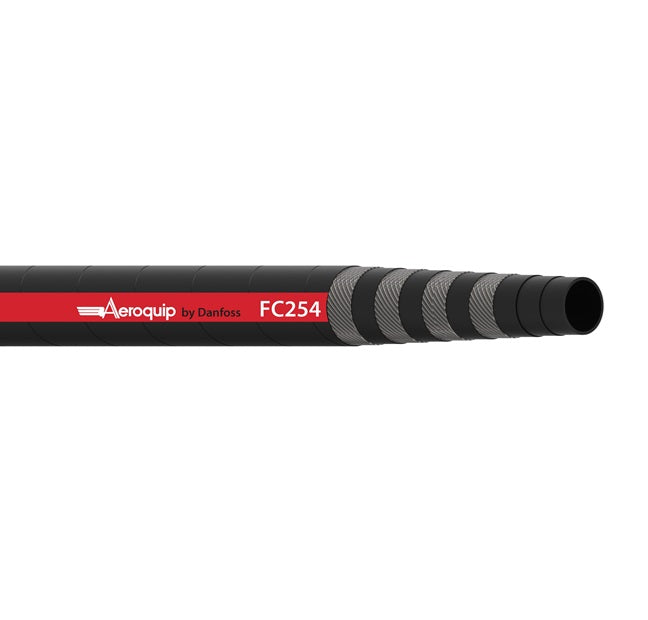

FC254-08 Aeroquip by Danfoss | 4S 4-Spiral Wire Hydraulic Hose | Exceeds: EN 856 4SP | 0.50" ID

FC254-08 Aeroquip by Danfoss | 4S 4-Spiral Wire Hydraulic Hose | Exceeds: EN 856 4SP | 0.50" ID

$25.65 - $25.65
$25.65
$25.65 - $25.65
$25.65

Aeroquip® by Danfoss
FC254 Series | 4S 4-Spiral Wire Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC254-08 Danfoss
Brand: Aeroquip
Series: FC254 Series
Hose Color(s): Black
Dash Size: -8
Internal Diameter: 0.50in
Outer Diameter: 0.98in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, EN856, SAE 100R11, USCG
Hose Properties:
Application: Hydraulic system service with petroleum and waterbased fluids.
For general industrial use.		 SAE Rating: Exceeds: EN 856 4SP
Other Ratings: MSHA Accepted Tube: Synthetic Rubber
Reinforcement: 4-Spiral Wire Cover: DURA-TUFF Synthetic Rubber
Temperature Range: -40°F to +260°F
(-40°C to +127°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC254-08 12 12,7mm 0.50" 25,6mm 1.01" 530,0 bar 7700 psi 2120 bar 30800 psi 203,0mm 8.00" 1,07 kg/m 0.72 lbs/ft
FC254-12 19 19,0mm 0.75" 32,5mm 1.28" 497,0 bar 7200 psi 1988 bar 28800 psi 279,0mm 11.0" 1,58 kg/m 1.06 lbs/ft
FC254-16 25 25,4mm 1.00" 39,4mm 1.55" 415,0 bar 6000 psi 1660 bar 24000 psi 305,0mm 12.0" 1,96 kg/m 1.32 lbs/ft
FC254-20 31 31,8mm 1.25" 46,0mm 1.81" 350,0 bar 5100 psi 1400 bar 20400 psi 419,0mm 16.5" 2,43 kg/m 1.63 lbs/ft
FC254-24 38 38,1mm 1.50" 55,1mm 2.17" 300,0 bar 4350 psi 1200 bar 17400 psi 508,0mm 20.0" 3,02 kg/m 2.03 lbs/ft
FC254-32 51 50,8mm 2.00" 69,3mm 2.73" 275,0 bar 4000 psi 1100 bar 16000 psi 635,0mm 25.0" 4,49 kg/m 3.02 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
