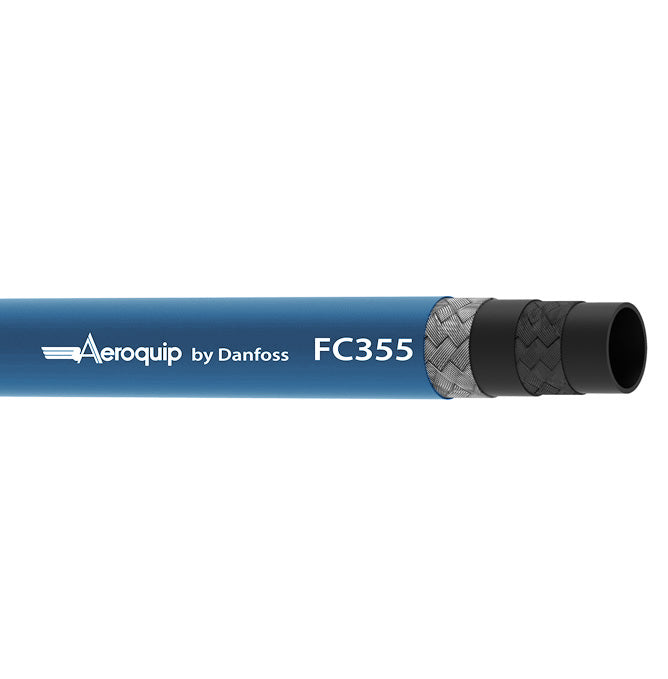

FC355-20 Aeroquip by Danfoss | Engine & Air Brake Hose | SAE J1402 | 1.13" ID | Blue

FC355-20 Aeroquip by Danfoss | Engine & Air Brake Hose | SAE J1402 | 1.13" ID | Blue

$34.67 - $34.67
$34.67
$34.67 - $34.67
$34.67

Aeroquip® by Danfoss
FC355 Series | Engine & Air Brake Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC355-20 Danfoss
Brand: Aeroquip
Series: FC355 Series
Hose Color(s): Blue
Internal Diameter: 1.13in
Outer Diameter: 1.52in
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Applicable Specs & Approvals: SAE J1402
Hose Properties:
Application: Air brake, gasoline, fuel, lubricating oils and coolants.
Truck and engine maintenance - Engine and air brake.		 SAE Ratings: Meets: SAE J1402, DOT/FMVSS 106 Type AII
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: Polyester Inner Braid and a Single Wire Braid Cover: Blue AQP Elastomer
Operating Parameters: -40°F to +302°F (-40°C to +150°C)
Air not to exceed 250 psi or +250°F (+121°C)
Biodiesel use up to B20 and max temperature of +212°F (+100°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
mm in mm in bar psi bar psi mm in kPa in Hg. kg/m lbs/ft
FC355-04 4,8mm 0.19" 13,2mm 0.52" 105,0 bar 1500 psi 420,0 bar 6000 psi 19,1mm 0.75" 94,8kPa 28 in Hg. 0,22 kg/m 0.17 lbs/ft
FC355-06 7,9mm 0.31" 17,3mm 0.68" 105,0 bar 1500 psi 420,0 bar 6000 psi 31,8mm 1.25" 94,8kPa 28 in Hg. 0,35 kg/m 0.24 lbs/ft
FC355-08 10,4mm 0.41" 19,6mm 0.77" 87,0 bar 1250 psi 350,0 bar 5000 psi 44,5mm 1.75" 94,8kPa 28 in Hg. 0,43 kg/m 0.29 lbs/ft
FC355-10 12,7mm 0.50" 23,9mm 0.94" 87,0 bar 1250 psi 350,0 bar 5000 psi 57,2mm 2.25" 94,8kPa 28 in Hg. 0,59 kg/m 0.40 lbs/ft
FC355-12 16,0mm 0.63" 27,4mm 1.08" 52,0 bar 750 psi 210,0 bar 3000 psi 69,9mm 2.75" 67,7kPa 20 in Hg. 0,68 kg/m 0.46 lbs/ft
FC355-16 22,4mm 0.88" 31,5mm 1.24" 28,0 bar 400 psi 112,0 bar 1600 psi 88,9mm 3.50" 50,8kPa 15 in Hg. 0,74 kg/m 0.50 lbs/ft
FC355-20 28,7mm 1.13" 38,6mm 1.52" 21,0 bar 300 psi 87,0 bar 1250 psi 114,3mm 4.50" 50,8kPa 15 in Hg. 0,87 kg/m 0.59 lbs/ft
FC355-24 35,1mm 1.38" 44,5mm 1.75" 17,0 bar 250 psi 70,0 bar 1000 psi 139,7mm 5.50" 37,2kPa 11 in Hg. 1,02 kg/m 0.69 lbs/ft
FC355-32 46,0mm 1.81" 56,4mm 2.22" 14,0 bar 200 psi 56,0 bar 800 psi 215,9mm 8.50" 37,2kPa 11 in Hg. 1,37 kg/m 0.93 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
