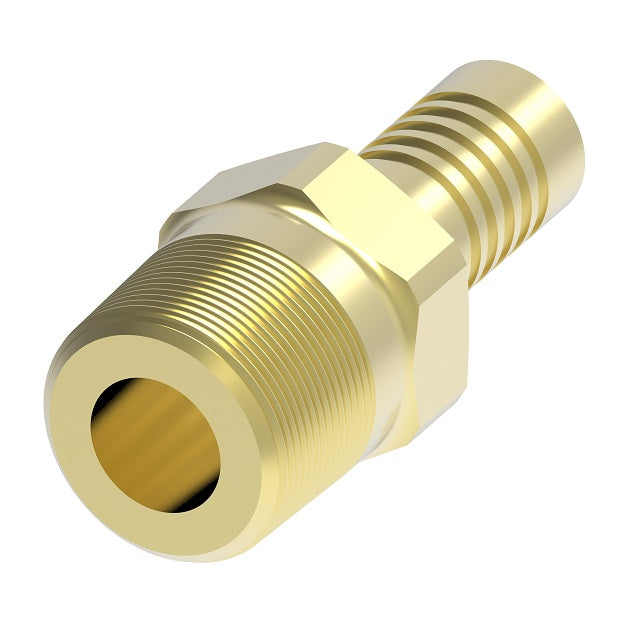

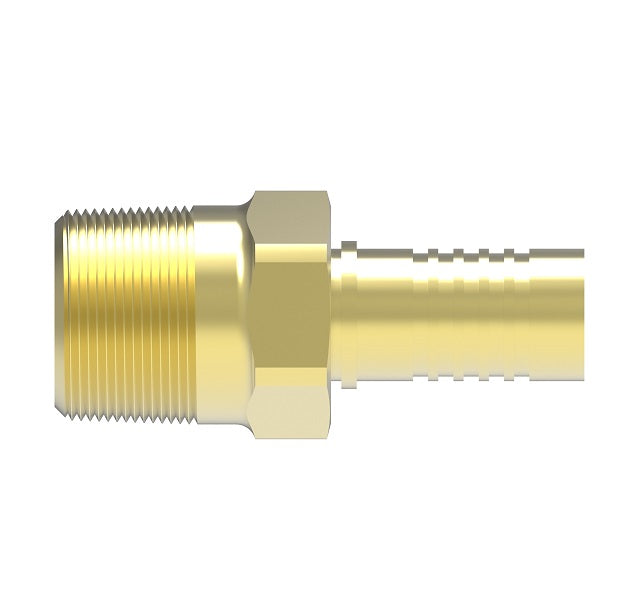

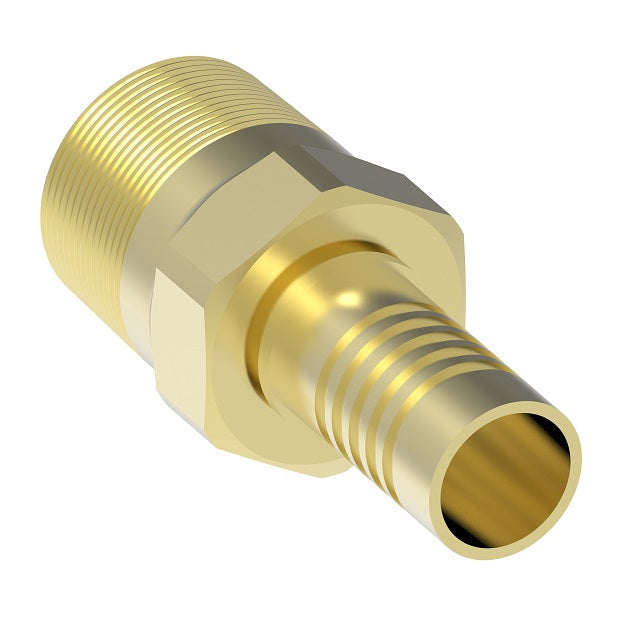

FC3680-1616B Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -16 Male NPTF x -16 Hose Barb | Brass

FC3680-1616B Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -16 Male NPTF x -16 Hose Barb | Brass

$48.84 - $48.84

$48.84

$48.84 - $48.84

$48.84

Aeroquip by Danfoss
Reusable PTFE Hose Fitting Nipple - Male NPTF - Straight

Specifications for Variant SKU: FC3680-1616B Danfoss
Brand:	Aeroquip
Series:	FC Series
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPTF, 1in Hose Barb
Material(s):	Brass
Compatible with the following Series:	2807 Series \| FC186 Series \| FC465 Series


Part Number Complete Fitting Brass	Part Number Nipple Assembly Brass	Thread	Hose Size	A	D	E	Hex 2
-	FC3680-0606B	3/8-18	-06	1.40"	0.91"	0.25"	0.69"
FC9846-0808-38	FC3680-0808B	1/2-14	-08	2.04"	1.16"	0.34"	0.88"
FC9846-0810-38	FC3680-0810B	1/2-14	-10	2.04"	1.16"	0.44"	0.88"
-	FC3680-1212B	3/4-14	-12	2.04"	1.16"	0.56"	1.06"
FC9846-1616-38	FC3680-1616B	1-11-1/2	-16"	2.32"	1.44"	0.80"	1.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
