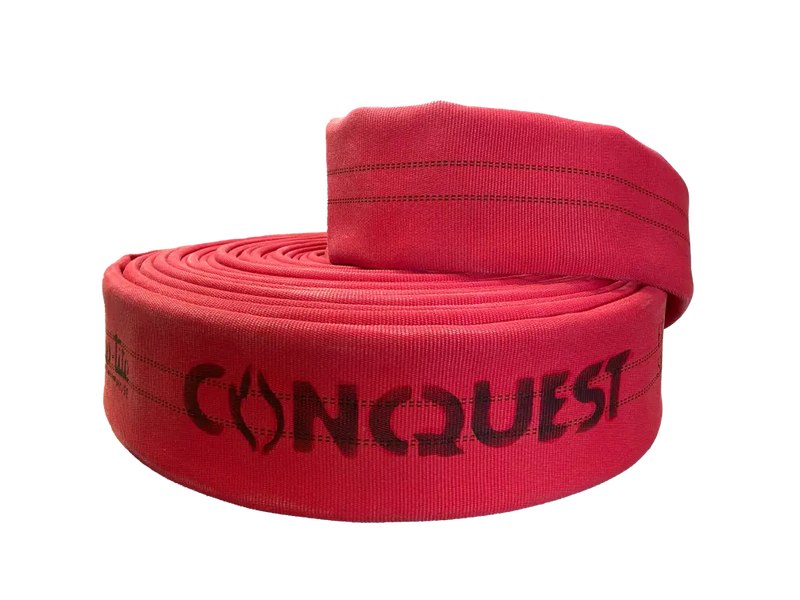

FC50x25R50S by Snap-Tite | CONQUEST Series | Double Jacket Polyester Fire Hose Assembly with Polyurethane Thru-the-Weave | 5" Hose I.D. with 5" Storzs | 300 PSI | Red Dura-Cote | 25ft Length

FC50x25R50S by Snap-Tite | CONQUEST Series | Double Jacket Polyester Fire Hose Assembly with Polyurethane Thru-the-Weave | 5" Hose I.D. with 5" Storzs | 300 PSI | Red Dura-Cote | 25ft Length

Save $268.80 Save $268.80
$940.80
$940.80 - $940.80
$940.80
$672.00
$672.00 - $672.00
$672.00

Snap-Tite Hose
CONQUEST™ LDH - POLYESTER DOUBLE JACKETED SUPPLY HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 25 FT

Specifications for Variant SKU: FC50x25R50S Snap-Tite
Series: CONQUEST Series
Hose Color(s): Red
Internal Diameter: 5in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Ends Configuration: 5in Storz, 5in Storz, Some Ends Match
Material(s): Aluminum
Applicable Specs & Approvals: NFPA
Model: Conquest™ LDH
Basic Construction: Polyester outer jacket, extruded thru-the-weave polyurethane liner.
Colors: Yellow, Red, Blue, Orange, Green, White (Uncoated)
Application: Attack, Supply, CAFS, Potable Water
Temperature Range: -40° F -150° F
Description:
Looking for a hose to flow a tremendous amount of water? You’ve found it with CONQUEST™! Today’s fires are hotter and more water is needed at the nozzle to knock them down fast. Conquest™ meets that challenge every day. Our patented thru-the-weave extruded polyurethane liner has an incredibly smooth surface that enhances water flow.
Features:
  • Patented double jacketed hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose. NO ADHESIVE IS USED. The lining will never delaminate.
  • Optional Dura-Cote™ treatment.
  • Outstanding flow and low friction loss.
  • Hose remains flexible at temperatures as low as -40°F (-40°C) and meets all NFPA requirements for ozone resistance.
  • Suitable for CAFS and foam concentrates.
  • Engineered to meet the requirements of high-pressure applications. General industrial and construction use, designed for relay pumping, pressurizing standpipes, and sprinkler systems.
  • Made in USA to ISO-9001:2015 certified quality assurance system.
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" FC40x25Y40S FC40x50Y40S FC40x100Y40S Standard 300 600 900 0.8 38,500+
5" FC50x25Y50S FC50x50Y50S FC50x100Y50S Standard 300 600 900 1.09 38,500+
6" FC60x25Y60S FC60x50Y60S FC60x100Y60S Standard 300 600 900 1.52 38,500+
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" FC40x25R40S FC40x50R40S FC40x100R40S Standard 300 600 900 0.8 38,500+
5" FC50x25R50S FC50x50R50S FC50x100R50S Standard 300 600 900 1.09 38,500+
6" FC60x25R60S FC60x50R60S FC60x100R60S Standard 300 600 900 1.52 38,500+
Blue
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" FC40x25B40S FC40x50B40S FC40x100B40S Standard 300 600 900 0.8 38,500+
5" FC50x25B50S FC50x50B50S FC50x100B50S Standard 300 600 900 1.09 38,500+
6" FC60x25B60S FC60x50B60S FC60x100B60S Standard 300 600 900 1.52 38,500+
Orange
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" FC40x25O40S FC40x50O40S FC40x100O40S Standard 300 600 900 0.8 38,500+
5" FC50x25O50S FC50x50O50S FC50x100O50S Standard 300 600 900 1.09 38,500+
6" FC60x25O60S FC60x50O60S FC60x100O60S Standard 300 600 900 1.52 38,500+
Green
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" FC40x25G40S FC40x50G40S FC40x100G40S Standard 300 600 900 0.8 38,500+
5" FC50x25G50S FC50x50G50S FC50x100G50S Standard 300 600 900 1.09 38,500+
6" FC60x25G60S FC60x50G60S FC60x100G60S Standard 300 600 900 1.52 38,500+
White (Uncoated)
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
4" FC40x25W40S FC40x50W40S FC40x100W40S Standard 300 600 900 0.8 38,500+
5" FC50x25W50S FC50x50W50S FC50x100W50S Standard 300 600 900 1.09 38,500+
6" FC60x25W60S FC60x50W60S FC60x100W60S Standard 300 600 900 1.52 38,500+

*1-year warranty.

*Potable water approved: Yes

*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
