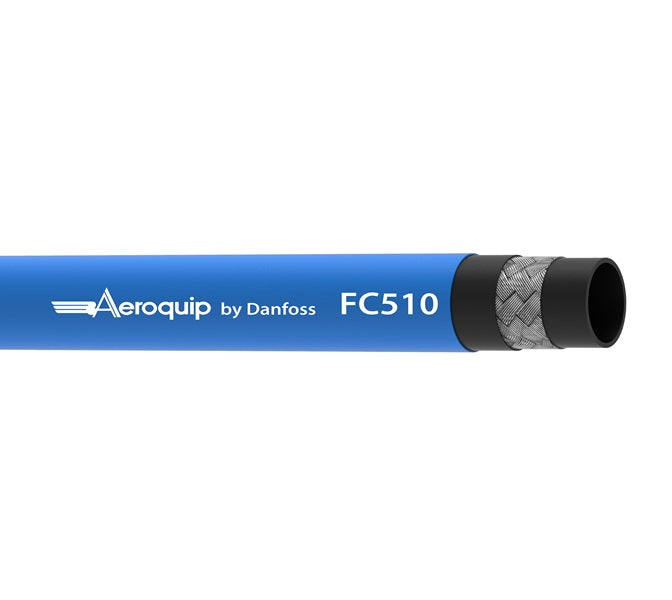

FC510-04 Aeroquip by Danfoss | HI-PAC High Temperature Wire Braided Hydraulic Hose | SAE 100R2 | 0.25" ID

FC510-04 Aeroquip by Danfoss | HI-PAC High Temperature Wire Braided Hydraulic Hose | SAE 100R2 | 0.25" ID

$18.03 - $18.03
$18.03
$18.03 - $18.03
$18.03

Aeroquip® by Danfoss
FC510 Series | HI-PAC High Temperature Wire Braided Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC510-04 Danfoss
Brand: Aeroquip
Series: FC510 Series
Hose Color(s): Black
Internal Diameter: 0.25in
Outer Diameter: 0.57in
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Applicable Specs & Approvals: SAE 100R2
Hose Properties:
Application: Petroleum and fire-resistant hydraulic fluids, fuel, and lubricating systems. SAE Rating: Meets: SAE 100R2, EN857 Type 1SC
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: HI-PAC Braided Wire Cover: Blue AQP Elastomer Cover
Temperature Range: -40°F to +302°F
(-40°C to +150°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC510-04 6 6,4mm 0.25" 14,5mm 0.57" 350,0 bar 5000 psi 1400,0 bar 20000 psi 76,2mm 3.00" 0,34 kg/m 0.23 lbs/ft
FC510-06 10 9,7mm 0.38" 17,5mm 0.69" 280,0 bar 4000 psi 1120,0 bar 16000 psi 88,9mm 3.50" 0,43 kg/m 0.29 lbs/ft
FC510-08 12 12,7mm 0.50" 20,3mm 0.80" 245,0 bar 3500 psi 980,0 bar 14000 psi 127,0mm 5.00" 0,51 kg/m 0.34 lbs/ft
FC510-10 16 16,0mm 0.63" 23,6mm 0.93" 192,0 bar 2750 psi 770,0 bar 11000 psi 152,4mm 6.00" 0,65 kg/m 0.44 lbs/ft
FC510-12 19 19,1mm 0.75" 27,7mm 1.09" 157,0 bar 2250 psi 630,0 bar 9000 psi 177,8mm 7.00" 0,77 kg/m 0.52 lbs/ft
FC510-16 25 25,4mm 1.00" 34,8mm 1.37" 140,0 bar 2000 psi 560,0 bar 8000 psi 228,6mm 9.00" 1,06 kg/m 0.71 lbs/ft
FC510-20 31 31,8mm 1.25" 43,2mm 1.70" 113,0 bar 1625 psi 455,0 bar 6500 psi 279,4mm 11.00" 1,61 kg/m 1.08 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
