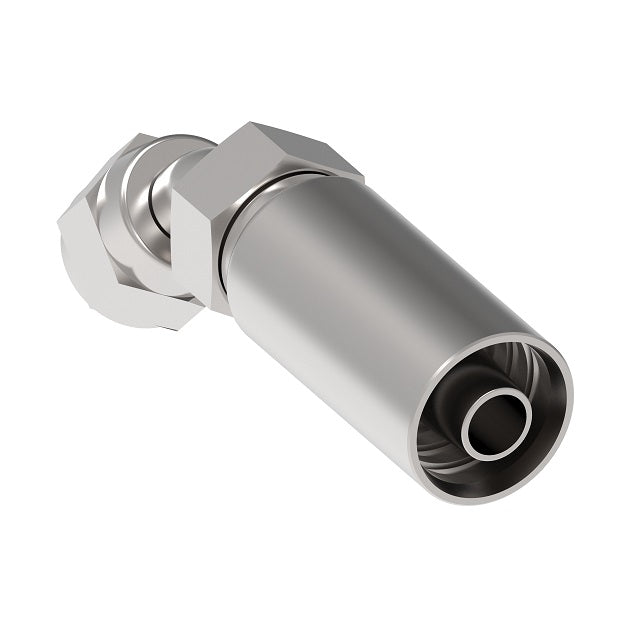

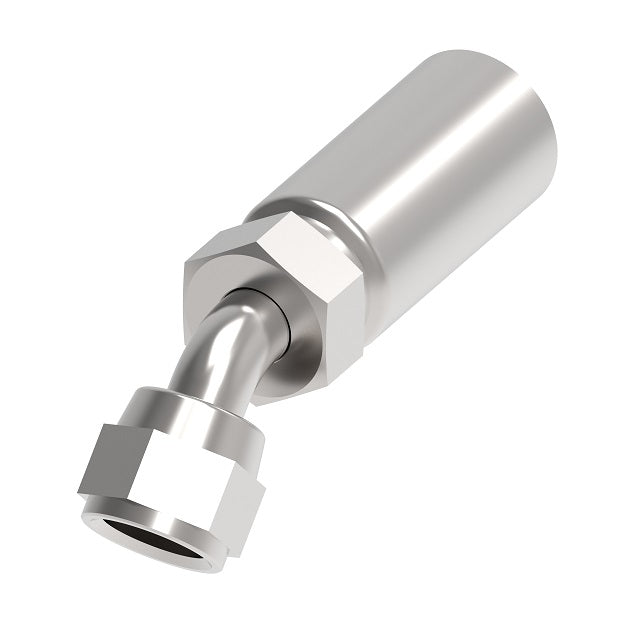

FC5813-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 45° Elbow | -06 Female 37° JIC Swivel x -06 Hose Barb | Carbon Steel

FC5813-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 45° Elbow | -06 Female 37° JIC Swivel x -06 Hose Barb | Carbon Steel

Name: FC5813-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 45° Elbow | -06 Female 37° JIC Swivel x -06 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5813-0606S Danfoss
Price: 29.5 USD
Availability: InStock

$29.50 - $29.50

$29.50

$29.50 - $29.50

$29.50

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC Swivel - 45° Elbow

Specifications for Variant SKU: FC5813-0606S Danfoss
Brand:	Aeroquip
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series

Part Number Carbon Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter
FC5813-0606S	0.375"	-06	0.24"
FC5813-1212S	0.75"	-12	0.58"
FC5813-1616S	1"	-16	0.78"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
