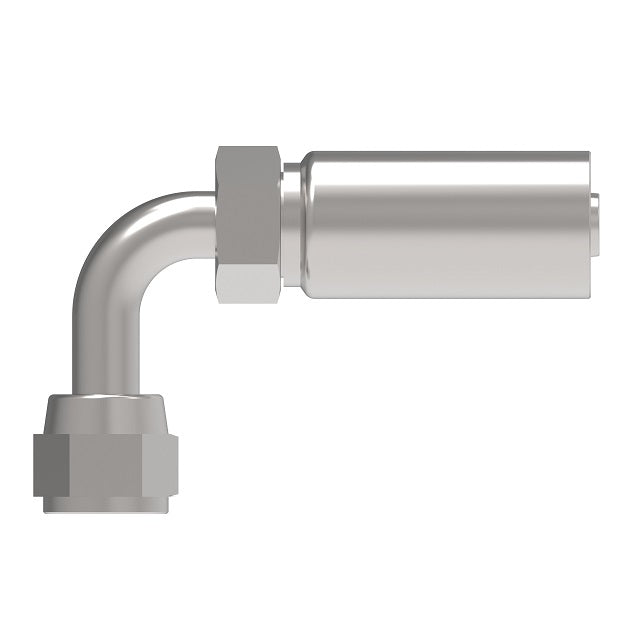

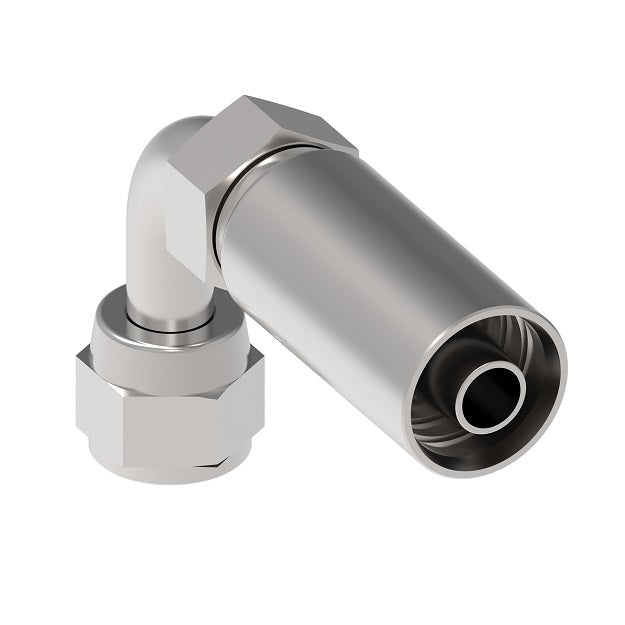

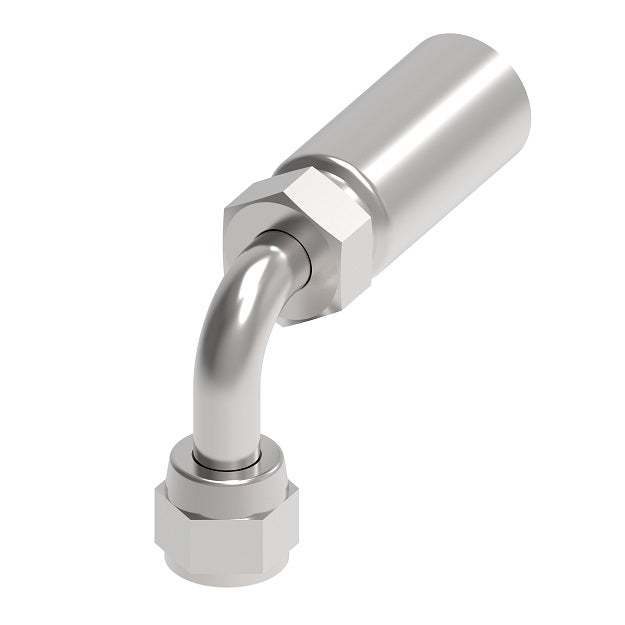

FC5814-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 90° Elbow | -06 Female 37° JIC Swivel x -06 Hose Barb | Carbon Steel

FC5814-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 90° Elbow | -06 Female 37° JIC Swivel x -06 Hose Barb | Carbon Steel

Name: FC5814-0606S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 90° Elbow | -06 Female 37° JIC Swivel x -06 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5814-0606S Danfoss
Price: 29.48 USD
Availability: InStock

$29.48 - $29.48

$29.48

$29.48 - $29.48

$29.48

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC Swivel - 90° Elbow

Specifications for Variant SKU: FC5814-0606S Danfoss
Brand:	Aeroquip
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series

Part Number Carbon Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter
FC5814-0605S	-	-05	-	-
FC5814-0606S	0.375"	-06	0.24"	0.8125"
FC5814-1212S	0.75"	-12	0.58"	-
