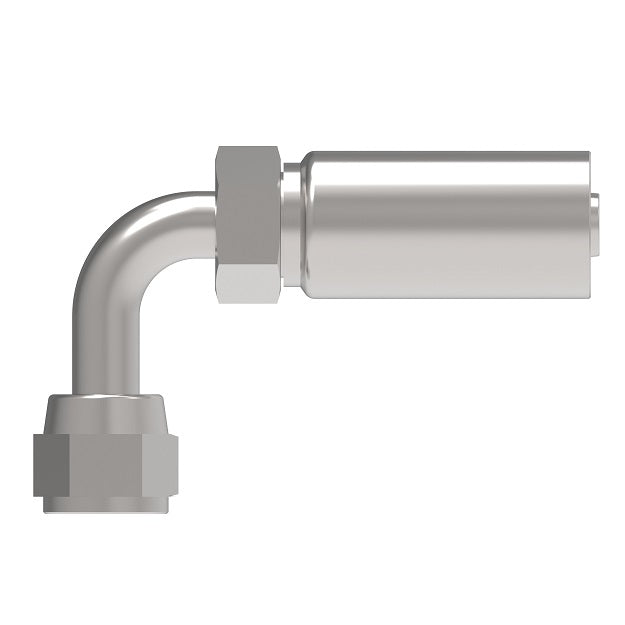

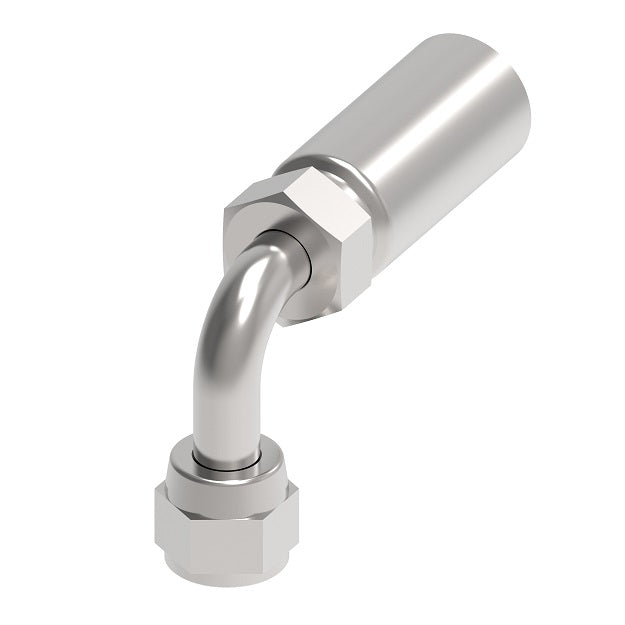

FC5937-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 90° Elbow | -04 Female 37° JIC Swivel x -04 Hose Barb | Carbon Steel

FC5937-0404S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | 90° Elbow | -04 Female 37° JIC Swivel x -04 Hose Barb | Carbon Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,060.60 - $1,060.60

$1,060.60

$1,060.60 - $1,060.60

$1,060.60

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Female 37° JIC - 90° Elbow

Specifications for Variant SKU: FC5937-0404S Danfoss \| 10 \|
Brand:	Aeroquip
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female JIC, 1/4in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series

Part Number Carbon Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter
FC5937-0404S	0.25"	-04	0.15"	0.6875"
FC5937-0504S	0.3125"	-04	0.15"	0.6875"
FC5937-0806S	0.375"	-06	0.28"
FC5937-0808S	0.5"	-08	0.38"	-
FC5937-1008S	-	-08	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
