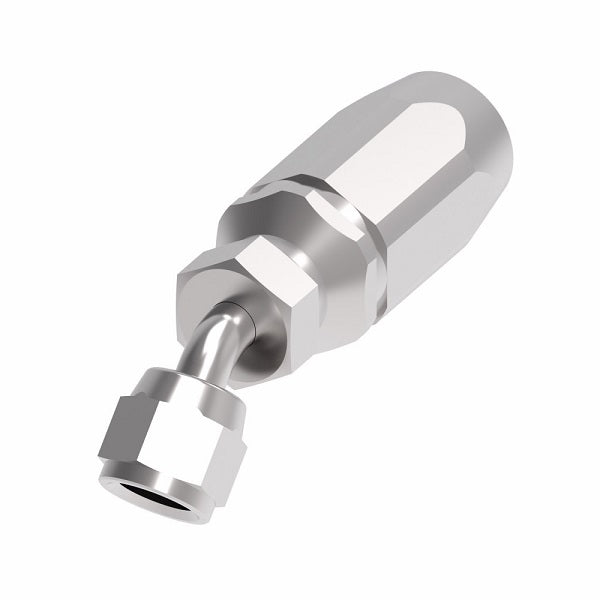

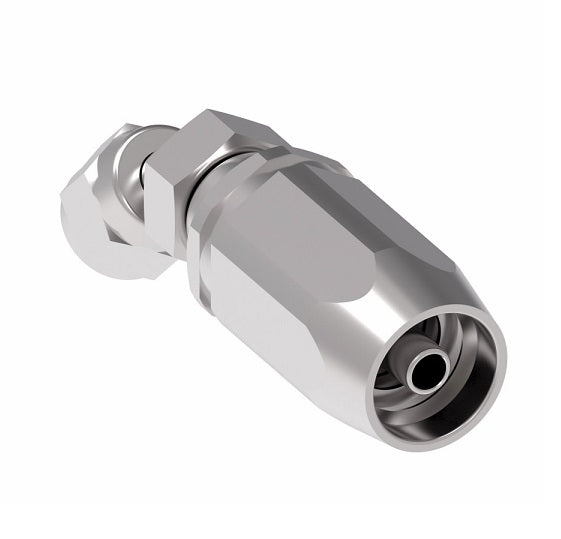

FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

Name: FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5990-0404S Danfoss
Price: 48.2 USD
Availability: InStock

$48.20 - $48.20

$48.20

$48.20 - $48.20

$48.20

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5990-0404S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Female JIC, 1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FC5990-0404S	-04	7/16-20	2.51"	1.34"	0.17"	0.33"
FC5990-0606S	-06	9/16-18	2.82"	1.48"	0.31"	0.39"
FC5990-0808S	-08	3/4-16	3.26"	1.75"	0.39"	0.55"
FC5990-1212S	-12	1-1/16-12	4.15"	2.28"	0.61"	0.78"
