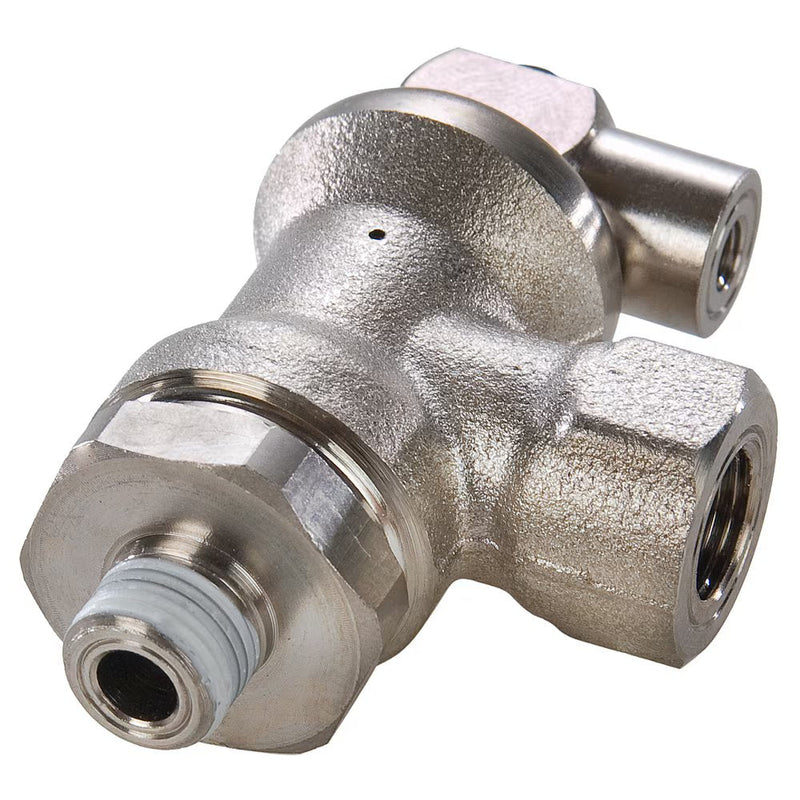

FC602-8 by Parker | Threaded Port Lock Out Valve | 1/2" Male NPT Thread x 1/2" Female NPT Thread | 2.19" Length | Multi-Plane Swivel | Brass

Name: FC602-8 by Parker | Threaded Port Lock Out Valve | 1/2" Male NPT Thread x 1/2" Female NPT Thread | 2.19" Length | Multi-Plane Swivel | Brass
Brand: Parker Fluid Connections Division
SKU: FC602-8 Parker
Price: 111.33 USD
Availability: InStock

Save $74.22

$185.55

$185.55 - $185.55

$185.55

$111.33

$111.33 - $111.33

$111.33

by Parker Hannifin
Blocking Valves:FC602 Threaded Port Lock Out Valves

Specifications for Variant SKU: FC602-8 Parker
Series:	FC602 Series
Shape (Orientation):	Multi-Plane Swivel
Material(s):	Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Swivel, Silicone Free, Valved

Product Features:	Treated brass body Stainless steel gripping ring Nickel-plated brass threads NBR seals Silicone free
Markets:	Factory/Process Automation Packaging Petrochemical Automotive Process
Applications:	Robotics Packaging Packaging Textile Machine Tools
Pressure Range:	15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range:	-4° to +160° F (-20° to +71.1° C)
Leak Rate:	<3.2CCM
Number of Cycles:	>10 Million at 68°F and 1 HZ
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	NPT	NPT	Hex	H	H1	H2	L
FC602-2	1/8"	1/8"	21 mm	2.03"	1.24"	.79"	1.04"
FC602-4	1/4"	1/4"	21 mm	2.03"	1.24"	.79"	1.04"
FC602-6	3/8"	3/8"	24 mm	2.19"	1.14"	1.04"	1.34"
FC602-8	1/2"	1/2"	24 mm	2.19"	1.14"	1.04"	1.57"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
