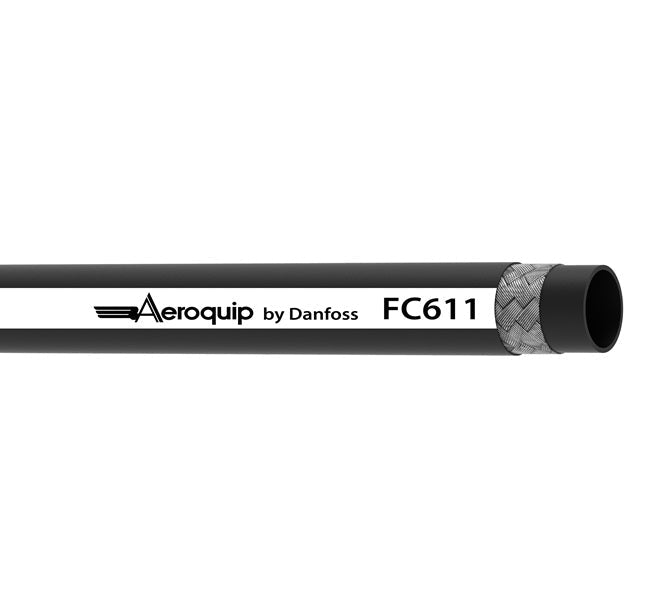

FC611-24 Aeroquip by Danfoss | EPDM Single Wire Braid Hydraulic Hose | 1.50" ID

Original price $58.02 - Original price $58.02
Original price
$58.02
$58.02 - $58.02
Current price $58.02

Aeroquip® by Danfoss
FC611 Series | EPDM Single Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC611-24 Danfoss
Brand: Aeroquip
Series: FC611 Series
Hose Color(s): Green
Dash Size: -24
Internal Diameter: 1.50in
Outer Diameter: 1.99in
Tubing Construction: EPDM
Cover Construction: EPDM
Hose Properties:
Application: Ground support equipment (GSE), industrial phosphate ester-based fluids, water glycol systems. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM Rubber
Reinforcement: Single Wire Braid Cover: Green EPDM Rubber
Temperature Range: -40°F to +175°F
(-40°C to +75°C)

Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC611-08 - - 0.05" - 0.83" - 2000 psi - 8000 psi - 7.00" - 0.27 lbs/ft
FC611-12 19 19,1mm 0.75" 27,9mm 1.10" 87,0 bar 1250 psi 350,0 bar 5000 psi 241,3mm 9.50" 0,64 kg/m 0.43 lbs/ft
FC611-16 25 25,4mm 1.00" 35,8mm 1.41" 70,0 bar 1000 psi 280,0 bar 4000 psi 304,8mm 12.00" 0,89 kg/m 0.60 lbs/ft
FC611-20 31 31,8mm 1.25" 43,4mm 1.71" 43,0 bar 625 psi 175,0 bar 2500 psi 419,1mm 16.50" 1,19 kg/m 0.80 lbs/ft
FC611-24 38 38,1mm 1.50" 50,5mm 1.99" 35,0 bar 500 psi 140,0 bar 2000 psi 508,0mm 20.00" 1,52 kg/m 1.02 lbs/ft
FC611-32 51 50,8mm 2.00" 64,0mm 2.52" 26,0 bar 375 psi 105,0 bar 1500 psi 635,0mm 25.00" 1,90 kg/m 1.28 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
