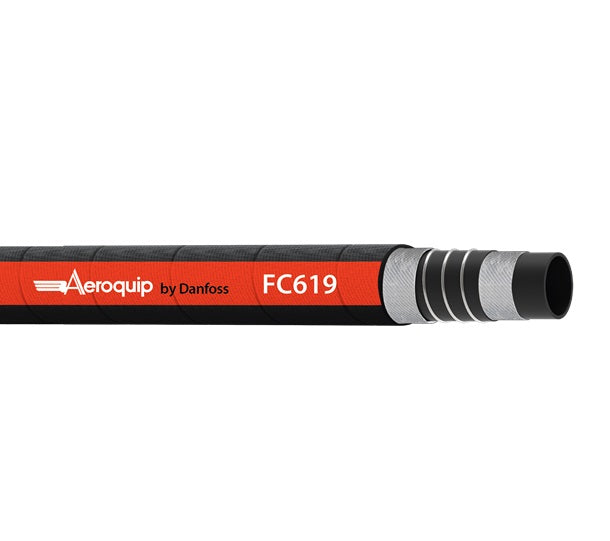

FC619-32 Aeroquip by Danfoss | Flexible 1/2 SAE Bend Radius Helical Wire Hydraulic Hose | SAE 100R4 | 2.00" ID

FC619-32 Aeroquip by Danfoss | Flexible 1/2 SAE Bend Radius Helical Wire Hydraulic Hose | SAE 100R4 | 2.00" ID

$34.94 - $34.94
$34.94
$34.94 - $34.94
$34.94

Aeroquip® by Danfoss
FC619 Series | Flexible 1/2 SAE Bend Radius Helical Wire Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC619-32 Danfoss
Brand: Aeroquip
Series: FC619 Series
Hose Color(s): Black
Internal Diameter: 2.00in
Outer Diameter: 2.55in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, SAE 100R4
Hose Properties:
Application: Suction and transfer applications for petroleum hydraulic fluids, fuel, lubricating oils, gasoline, water and many other industrial fluids. SAE Rating: Exceeds: SAE 100R4, ISO 18752
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Helical Wire Between Two Textile Reinforcement Layers Cover: Synthetic Rubber
Temperature Range: -40°F to +275°F
(-40°C to +135°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum service Weight
DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft
FC619-12 19 19,1mm 0.75" 30,7mm 1.21" 21,0 bar 300 psi* 84,0 bar 1200 psi 63,5mm 2.50" 94,8kPa 28in/Hg 0,68 kg/m 0.46 lbs/ft
FC619-16 25 25,4mm 1.00" 37,6mm 1.48" 17,0 bar 250 psi* 70,0 bar 1000 psi 76,2mm 3.00" 94,8kPa 28in/Hg 0,83 kg/m 0.56 lbs/ft
FC619-20 31 31,8mm 1.25" 44,5mm 1.75" 14,0 bar 200 psi* 56,0 bar 800 psi 102,0mm 4.00" 94,8kPa 28in/Hg 1,16 kg/m 0.78 lbs/ft
FC619-24 38 38,1mm 1.50" 51,8mm 2.04" 10,5 bar 150 psi* 42,0 bar 600 psi 127,0mm 5.00" 94,8kPa 28in/Hg 1,49 kg/m 1.00 lbs/ft
FC619-32 51 50,8mm 2.00" 64,8mm 2.55" 7,0 bar 100 psi* 28,0 bar 400 psi 152,4mm 6.00" 94,8kPa 28in/Hg 1,83 kg/m 1.23 lbs/ft
FC619-40 63 63,5mm 2.50" 79,2mm 3.12" 4,0 bar 62 psi 17,0 bar 250 psi 355,6mm 14.00" 94,8kPa 28in/Hg 2,35 kg/m 1.58 lbs/ft
FC619-48 80 76,2mm 3.00" 95,3mm 3.75" 4,0 bar 62 psi 16,0 bar 225 psi 457,2mm 18.00" 94,8kPa 28in/Hg 3,36 kg/m 2.26 lbs/ft

* Maximum working pressure for band clamp type fittings is 3,4 bar [50 psi]

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
