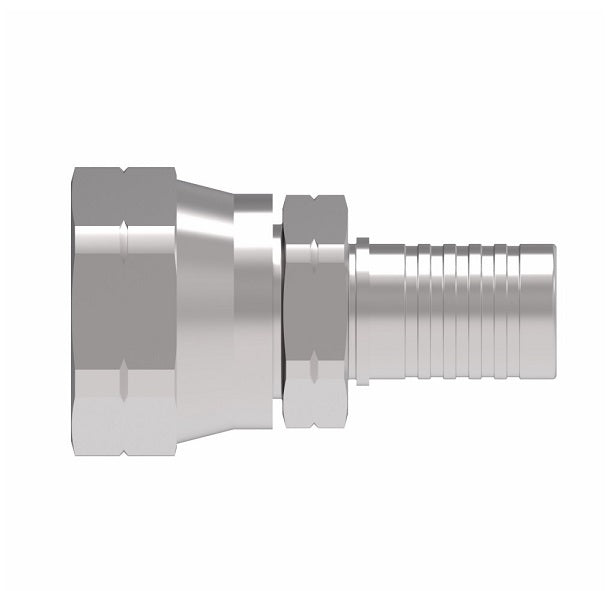

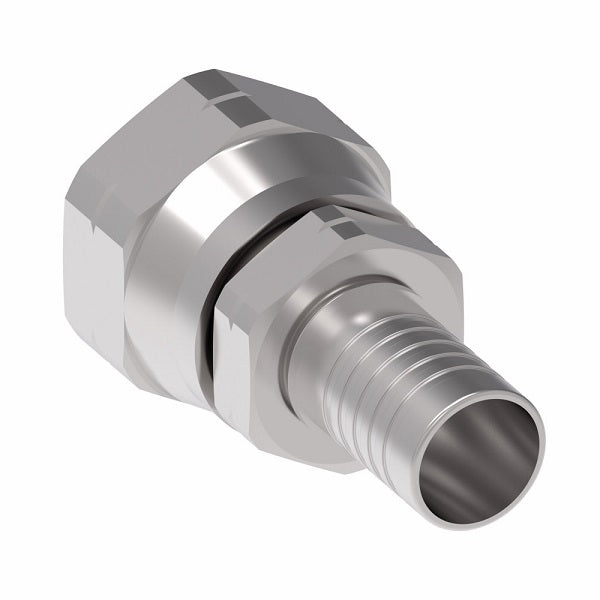

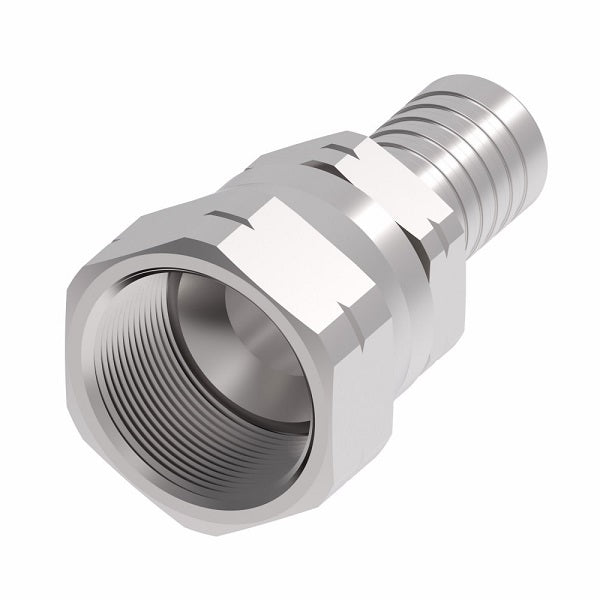

FC6216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel
FC6216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel | Pack of 10
FC6216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel | Pack of 10
FC6216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel

FC6216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Nipple Assembly | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel | Pack of 10

$210.00 - $210.00
$210.00
$210.00 - $210.00
$210.00

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC6216-1010S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 5/8in Female SAE 45 Flare, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:

Component Part Numbers

Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
- FC6216-0403S - - -03 - - - - -
FC7216-0404S FC6216-0404S FC3596-04S 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
- FC6216-0505S FC3443-04S 1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC7216-0606S FC6216-0606S FC3443-05S 5/8-18 -06 1.63" 1.14" 0.25" 3/4" 9/16"
FC7216-0808S FC6216-0808S FC3596-08S 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
- FC6216-1008S - - -08 - - - - -
FC7216-1010S FC6216-1010S FC3443-08S 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC7216-1212S FC6216-1212S FC3596-12S 1-1/16-14 -12 2.29" 1.41" 0.56" 1-1/4" 1"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
