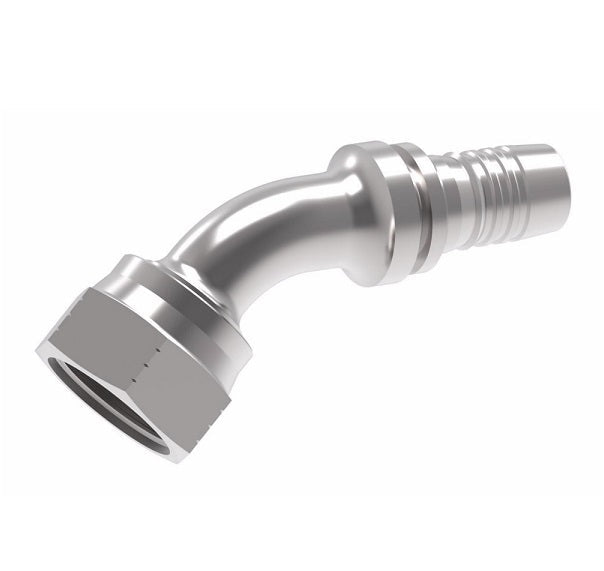

FC6220-0808S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel

Name: FC6220-0808S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow PTFE Crimp Fitting | FC Series | Nipple Assembly | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC6220-0808S Danfoss
Price: 15.27 USD
Availability: InStock

$15.27 - $15.27

$15.27

$15.27 - $15.27

$15.27

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - 45° Elbow - Steel

FC Series

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC6220-0808S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	1/2in Female SAE 45 Flare, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
FC7220-0808S	FC6220-0808S	FC3596-08S	3/4-16	-08	2.16"	1.27"	0.36"	0.55"	7/8"	-

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
