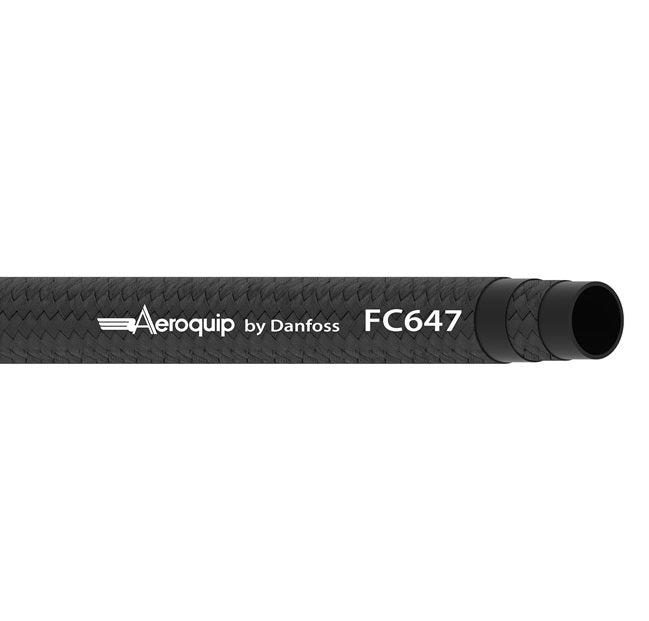

FC647-12BLK Aeroquip by Danfoss | Low Pressure SOCKETLESS™ Textile Braided Hose | 0.75" ID | Black

FC647-12BLK Aeroquip by Danfoss | Low Pressure SOCKETLESS™ Textile Braided Hose | 0.75" ID | Black

$14.38 - $14.38
$14.38
$14.38 - $14.38
$14.38

Aeroquip® by Danfoss
FC647 Series | Low Pressure SOCKETLESS™ Textile Braided General Purpose Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC647-12BLK Danfoss
Brand: Aeroquip
Series: FC647 Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.05in
Tubing Construction: Synthetic Rubber
Cover Construction: Polyester Textile Braid
Hose Properties:
Application: For gasoline, fuel and lubricating oils, air and water.
Not recommended for hydraulic impulse applications.
Not approved for air brake applications.		 Other Ratings: N/A
Tube: Synthetic Rubber Cover: Polyester Braided
Reinforcement: Textile Braid Temperature Range: -40°F to +212°F (-40°C to +100°C)
Water not to exceed +150°F (+66°C).
Air not to exceed +165°F (+74°C).
Part
Number
Black		 Part
Number
Green		 Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft ft in/Hg
FC647-04BLK - 6 6,4mm 0.25" 13,2mm 0.52" 25,0 bar 360 psi 99,0 bar 1440 psi 76,2mm 3.00" 94,8 kPa 28 in/Hg 0,09 kg/m 0.06 lbs/ft
FC647-06BLK FC647-06GRN 10 9,7mm 0.38" 16,8mm 0.66" 21,0 bar 300 psi 84,0 bar 1200 psi 76,2mm 3.00" 94,8 kPa 28 in/Hg 0,15 kg/m 0.09 lbs/ft
FC647-08BLK - 13 12,7mm 0.50" 20,1mm 0.79" 21,0 bar 300 psi 84,0 bar 1200 psi 127,0mm 5.00" 94,8 kPa 28 in/Hg 0,18 kg/m 0.12 lbs/ft
FC647-10BLK FC647-10GRN 16 16,0mm 0.63" 23,4mm 0.92" 17,0 bar 250 psi 70,0 bar 1000 psi 152,4mm 6.00" 60,9 kPa 18 in/Hg 0,24 kg/m 0.16 lbs/ft
FC647-12BLK - 19 19,1mm 0.75" 26,7mm 1.05" 17,0 bar 250 psi 70,0 bar 1000 psi 177,8mm 7.00" 60,9 kPa 18 in/Hg 0,27 kg/m 0.18 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
