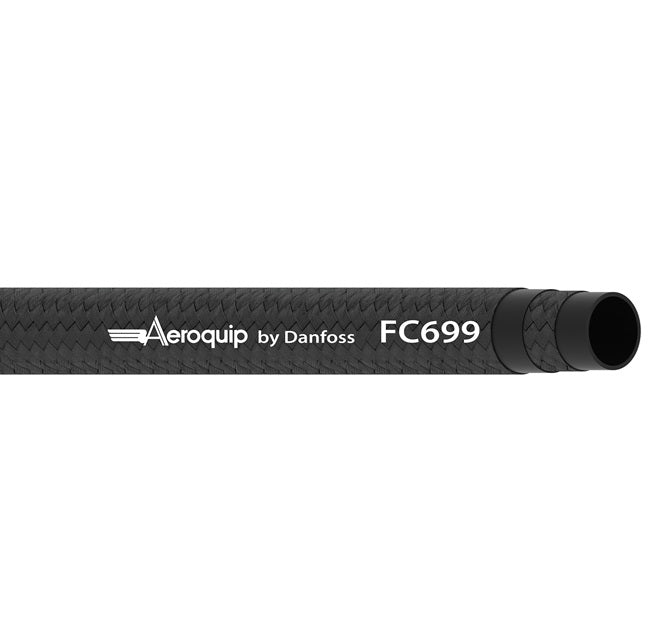

FC699-06 Aeroquip by Danfoss | High Temp Fuel & Oil Hose Single Wire Braid Transportation Hose | 0.38" ID

FC699-06 Aeroquip by Danfoss | High Temp Fuel & Oil Hose Single Wire Braid Transportation Hose | 0.38" ID

Minimum Order Quantity: 700 Feet

$6.49 - $6.49
$6.49
$6.49 - $6.49
$6.49

Aeroquip® by Danfoss
FC699 Series | High Temp Fuel & Oil Hose Single Wire Braid Transportation Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC699-06RL Danfoss
Brand: Aeroquip
Series: FC699 Series
Hose Color(s): Black
Internal Diameter: 0.38in
Outer Diameter: 0.63in
Tubing Construction: AQP Elastomer
Cover Construction: Polyester Textile Braid
Hose Properties:
Application: Diesel fuel, gasoline, crude and lubricating oils.
Transmission oil cooler.		 SAE Ratings: N/A
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: Single Aramid Braid Cover: Black Textile Braided
Operating Parameters: -40°F to +302°F (-40°C to +150°C)
Air not to exceed 250 psi or +250°F (+121°C)
Biodiesel use up to B20 and max temperature of +212°F (+100°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
DN mm in mm in bar psi bar psi mm in kPa in Hg kg/m lbs/ft
FC699-04 6 6,4mm 0.25" 12,4mm 0.49" 28,0 bar 400 psi 112,0 bar 1600 psi 31,8mm 1.25" 94,8 kPa 28 in. Hg 0,09 kg/m 0.06 lbs/ft
FC699-06 10 9,7mm 0.38" 16,0mm 0.63" 28,0 bar 400 psi 112,0 bar 1600 psi 38,1mm 1.50" 94,8 kPa 28 in. Hg 0,15 kg/m 0.10 lbs/ft
FC699-08 12 12,7mm 0.50" 19,6mm 0.77" 28,0 bar 400 psi 112,0 bar 1600 psi 50,8mm 2.00" 94,8 kPa 28 in. Hg 0,19 kg/m 0.13 lbs/ft
FC699-10 16 16,0mm 0.63" 23,9mm 0.94" 24,0 bar 350 psi 98,0 bar 1400 psi 63,5mm 2.50" 61,0 kPa 18 in. Hg 0,27 kg/m 0.18 lbs/ft
FC699-12 19 19,1mm 0.75" 27,4mm 1.08" 21,0 bar 300 psi 83,0 bar 1200 psi 101,6mm 4.00" 61,0 kPa 18 in. Hg 0,30 kg/m 0.20 lbs/ft
FC699-16 25 25,4mm 1.00" 33,8mm 1.33" 17,0 bar 250 psi 70,0 bar 1000 psi 114,3mm 4.50" 61,0 kPa 18 in. Hg 0,41 kg/m 0.28 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
