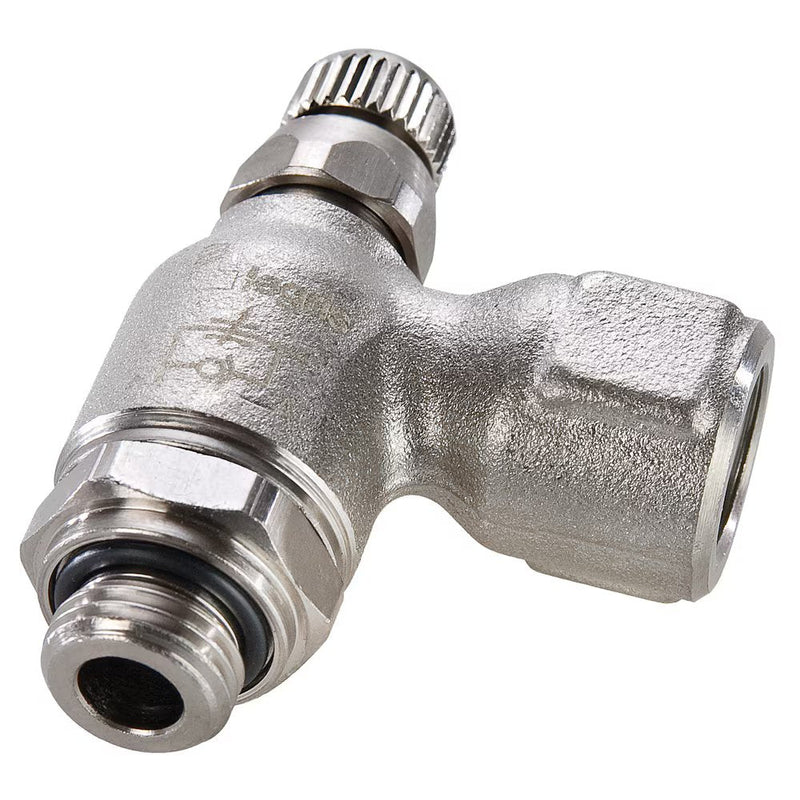

FC702-8G by Parker | Threaded Port Meter Out Metal Flow Control | 1/2" Female BSPP x 1/2" Male BSPP Thread | 25 mm Height | 90° Elbow | Nickel Plated Brass

FC702-8G by Parker | Threaded Port Meter Out Metal Flow Control | 1/2" Female BSPP x 1/2" Male BSPP Thread | 25 mm Height | 90° Elbow | Nickel Plated Brass

Save $38.59 Save $38.59
$96.48
$96.48 - $96.48
$96.48
$57.89
$57.89 - $57.89
$57.89

by Parker Hannifin
Metal Flow Controls:FC702 Threaded Port Meter Out Metal Flow Control - BSPP
Specifications for Variant SKU: FC702-8G Parker
Series: FC702 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved, Flow Control
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number BSPP Hex 1 Hex 2 H Closed H Open L
FC702-2G 1/8" 10 mm 19 mm 47.0 mm 52.5 mm 22.5 mm
FC702-4G 1/4" 14 mm 19 mm 50.5 mm 55.5 mm 32.0 mm
FC702-6G 3/8" 17 mm 25 mm 56.0 mm 62.0 mm 34.5 mm
FC702-8G 1/2" 17 mm 25 mm 55.0 mm 62.0 mm 37.5 mm
