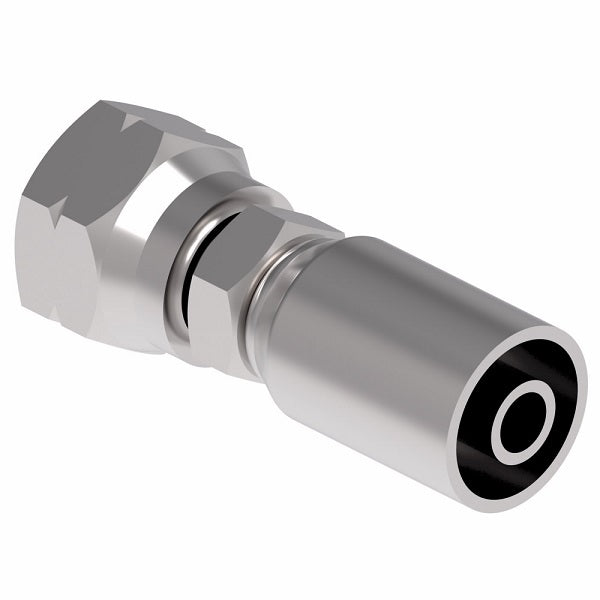

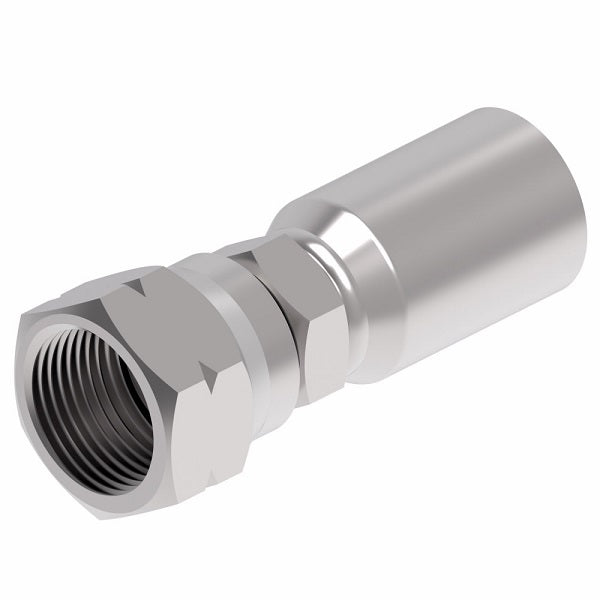

FC7216-0808S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel

FC7216-0808S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel

Name: FC7216-0808S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -08 Female SAE 45° Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC7216-0808S Danfoss
Price: 38.32 USD
Availability: InStock

$38.32 - $38.32

$38.32

$38.32 - $38.32

$38.32

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC7216-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female SAE 45 Flare, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
-	FC6216-0403S	-	-	-03	-	-	-	-	-
FC7216-0404S	FC6216-0404S	FC3596-04S	7/16-20	-04	1.55"	0.96"	0.12"	9/16"	7/16"
-	FC6216-0505S	FC3443-04S	1/2-20	-05	1.50"	1.01"	0.19"	5/8"	1/2"
FC7216-0606S	FC6216-0606S	FC3443-05S	5/8-18	-06	1.63"	1.14"	0.25"	3/4"	9/16"
FC7216-0808S	FC6216-0808S	FC3596-08S	3/4-16	-08	2.10"	1.21"	0.34"	7/8"	11/16"
-	FC6216-1008S	-	-	-08	-	-	-	-	-
FC7216-1010S	FC6216-1010S	FC3443-08S	7/8-14	-10	2.21"	1.32"	0.44"	1"	13/16"
FC7216-1212S	FC6216-1212S	FC3596-12S	1-1/16-14	-12	2.29"	1.41"	0.56"	1-1/4"	1"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
