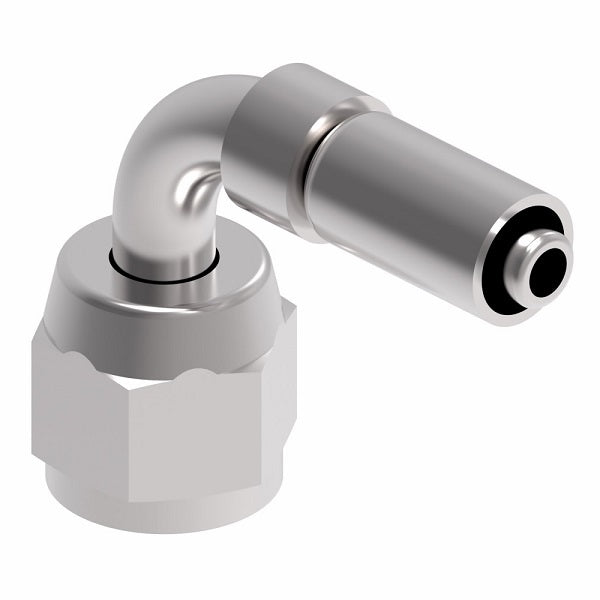

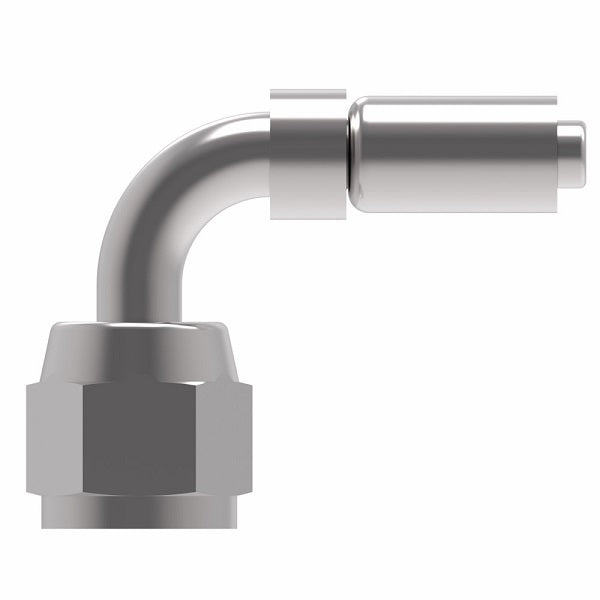

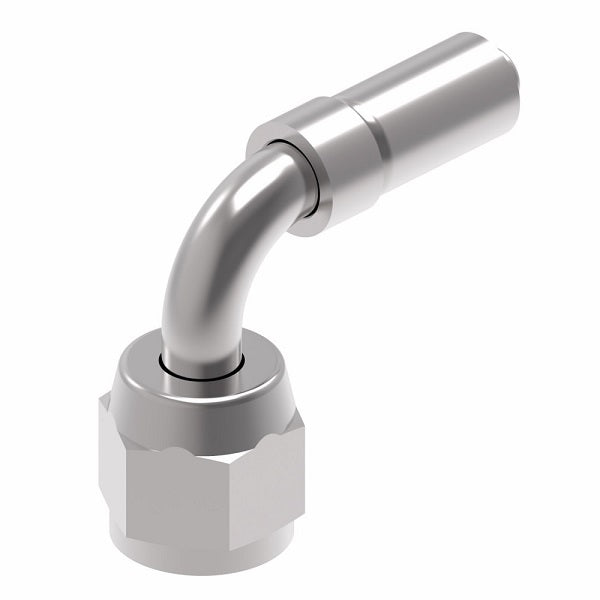

FC7217-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel

FC7217-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel

Name: FC7217-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow PTFE Crimp Fitting | FC Series | Complete Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC7217-0606S Danfoss
Price: 31.44 USD
Availability: InStock

$31.44 - $31.44

$31.44

$31.44 - $31.44

$31.44

PTFE Crimp Fittings

SAE Swivel Elbow Fittings - Steel

Specifications for Variant SKU: FC7217-0606S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Female SAE 45 Flare, 1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 \| FC465 \| S-TW \| SC-TW

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - 90° Elbow - Steel

FC Series

(Formerly Eaton Aeroquip)

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
FC5098-0404S	FC4098-0404S	FC3596-04S	7/16-20	-04	1.28"	0.69"	0.12"	0.68"	9/16"
FC7217-0606S	FC6217-0606S	FC3443-05S	5/8-18	-06	1.31"	0.82"	0.25"	0.85"	3/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
