FC740-06 Everflex by Danfoss | Smooth Bore Conductive Teflon™ Hose with Fire Resistant Cover | 0.31" Hose ID | Stainless Steel Braid

FC740-06 Everflex by Danfoss | Smooth Bore Conductive Teflon™ Hose with Fire Resistant Cover | 0.31" Hose ID | Stainless Steel Braid

$10.41 - $10.41
$10.41
$10.41 - $10.41
$10.41

Everflex by Danfoss
FC740 Series | Smooth Bore Conductive Teflon Hose with Fire Resistant Cover

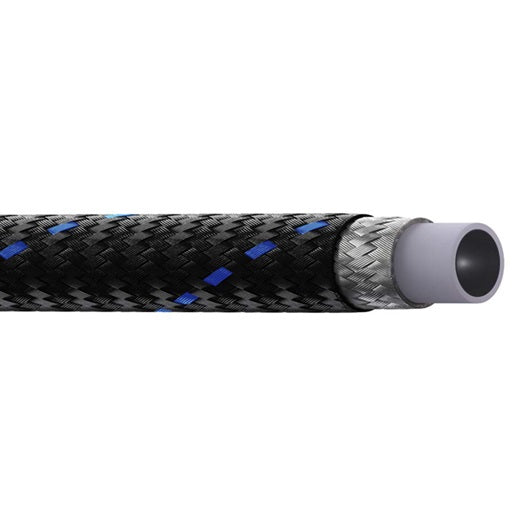

FC740 is a conductive Everflex hose made from extruded Teflon™ fluoropolymer with one layer of stainless steel wire braid and covered with a black fire resistant polyester blend yarn cover. The polyester cover also provides extra abrasion resistance.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC740-06 Danfoss
Brand: Everflex
Series: FC740 Series
Hose Color(s): Metallic
Internal Diameter: 0.31in
Outer Diameter: 0.54in
Tubing Construction: Smooth Bore Non-Dissipating PTFE
Cover Construction: Stainless Steel Braid
Hose Properties:
Applications: Steam, Compressor discharge, Chemical transfer, High temperature fuel line.
 SAE Ratings: N/A
Other Ratings: N/A Tube: Conductive Extruded PTFE
Reinforcement: Stainless Steel Wire Braid Cover: Fire Resistant Black Polyster Blend Cover with a Blue Tracer
Operating Parameters: -40°F to +500°F (-40°C to +260°C)
Part Number Hose ID Hose OD Min. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC740-03 3,2mm 0.13" 9,4mm 0.37" 210 bar 3000 psi 840,0 bar 12,000 psi 38,1mm 1.50" 0,10 kg/m 0.07 lbs/ft
FC740-04 4,8mm 0.19" 10,7mm 0.42" 210 bar 3000 psi 840,0 bar 12,000 psi 50,8mm 2.00" 0,12 kg/m 0.08 lbs/ft
FC740-06 7,9mm 0.31" 13,6mm 0.54" 175 bar 2500 psi 700,0 bar 10,000 psi 101,6mm 4.00" 0,18 kg/m 0.12 lbs/ft
FC740-08 10,3mm 0.41" 16,4mm 0.65" 140 bar 2000 psi 560,0 bar 8,000 psi 133,4mm 5.25" 0,24 kg/m 0.16 lbs/ft

Warning: These hoses can be used to convey hazardous chemicals, steam, hot liquids or other dangerous materials which can cause death, serious bodily injury including burns, pressure wounds or chemical exposure if released accidentally. They should, therefore, only be handled or worked on by personnel properly trained in the safe handling of the materials or chemicals conveyed in the hoses.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
