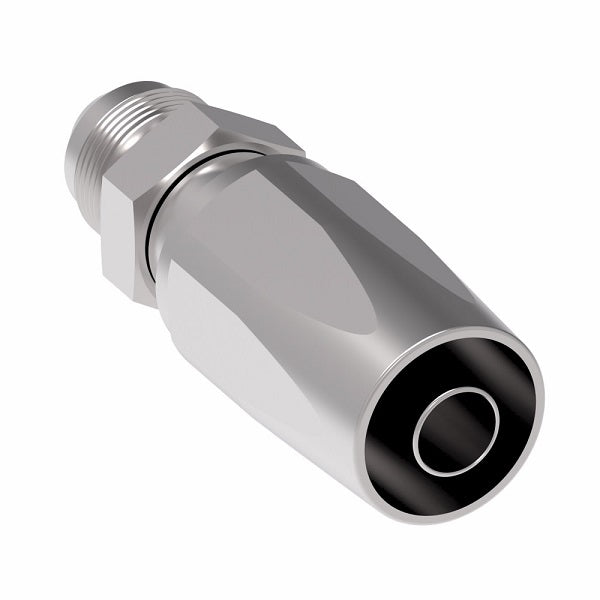

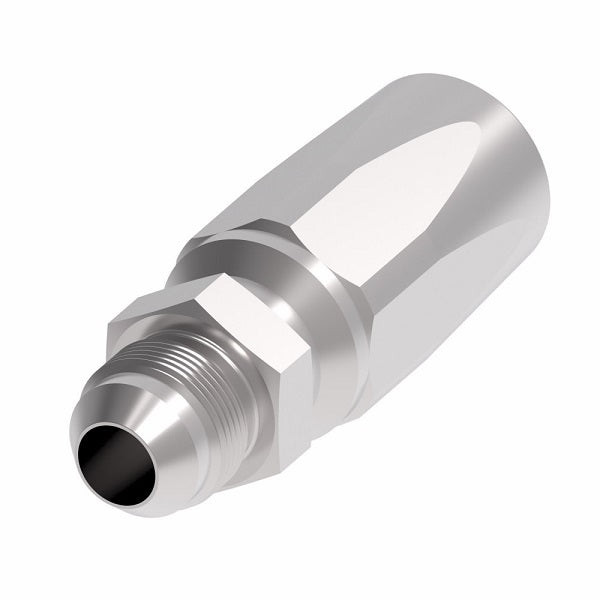

FC7986-0606S Aeroquip by Danfoss | 1 Wire TTC Male 37° JIC Flare 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male 37° JIC Flare x -06 Reusable Hose End | Steel

FC7986-0606S Aeroquip by Danfoss | 1 Wire TTC Male 37° JIC Flare 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male 37° JIC Flare x -06 Reusable Hose End | Steel

Name: FC7986-0606S Aeroquip by Danfoss | 1 Wire TTC Male 37° JIC Flare 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male 37° JIC Flare x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC7986-0606S Danfoss
Price: 64.2 USD
Availability: InStock

$64.20 - $64.20

$64.20

$64.20 - $64.20

$64.20

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Male 37° JIC Flare - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC7986-0606S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male JIC, 3/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	GH663 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC7986-0404S	-04	7/16-20	2.34"	1.30"	0.17"
FC7986-0606S	-06	9/16-18	2.67"	1.54"	0.31"
FC7986-0808S	-08	3/4-16	2.97"	1.50"	0.39"
FC7986-1212S	-12	1-1/16-12	3.66"	2.06"	0.61"
