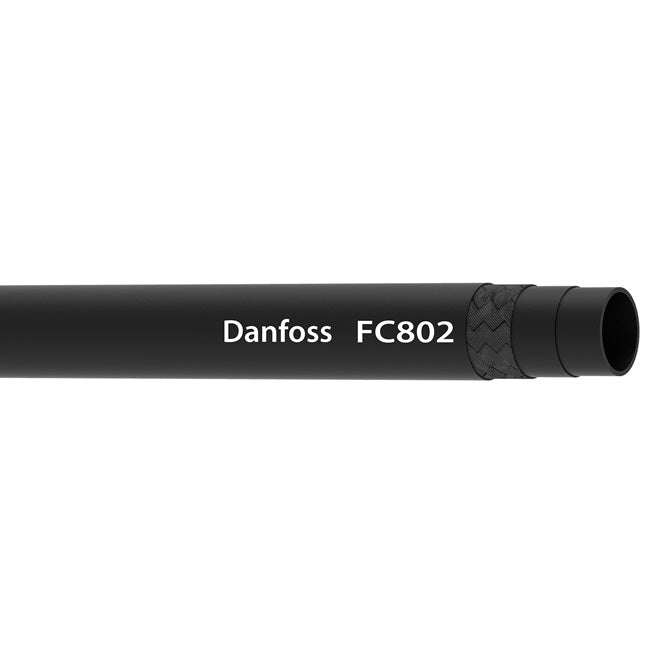

FC802-12 Aeroquip by Danfoss | Multi-Refrigerant A/C & Refrigeration Hose | SAE J51 | 0.65" ID

$26.19

Aeroquip® by Danfoss
FC802 Series | Multi-Refrigerant A/C & Refrigeration Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC802-12 Danfoss
Brand: Aeroquip
Series: FC802 Series
Hose Color(s): Black
Internal Diameter: 0.65in
Outer Diameter: 1.08in
Tubing Construction: Polyamide
Cover Construction: Bromobutyl
Applicable Specs & Approvals: SAE J51
Hose Properties:
Application: Mobile A/C.
Stationary A/C system and refrigeration.
SAE Rating: Meets: SAE J51
Other Ratings: N/A Tube: Polyamide veneer
Other Ratings: Meets: SAE J51 Cover: Bromobutyl
Tube: Polyamide Veneer Reinforcement: Single Polyester Braid
Operating Parameters: -40°F to +121°F (-40°C to +250°C)
HFC 134a effusion .25 lbs/ft2/yr at 176°F (1.21 kg/m2/yr at 80°C)
Moisture ingression .08 gm/in2/yr (.013/cm2/yr)(Class 1)
Benefits: Excellent flexibility and heat resistance.
Excellent noise and kink resistance.
Ease of installation and routing.
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Vacuum Service
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft kPa in/Hg
FC802-04 4 5,1 mm 0.20" 13,2mm 0.52" 35 bar 500 psi 175 bar 2500 psi 50,8mm 2.0" 0,16 kg/m 0.11 lbs/ft 94,8 kPa 28 in/Hg
FC802-06 6 8,38mm 0.33" 17,3mm 0.68" 35 bar 500 psi 175 bar 2500 psi 63,5mm 2.5" 0,24 kg/m 0.16 lbs/ft 94,8 kPa 28 in/Hg
FC802-08 8 10,67mm 0.42" 19,6mm 0.77" 35 bar 500 psi 175 bar 2000 psi 76,2mm 3.0" 0,27 kg/m 0.18 lbs/ft 94,8 kPa 28 in/Hg
FC802-10 10 13,2mm 0.52" 23,4mm 0.92" 35 bar 500 psi 175 bar 2500 psi 88,9mm 3.5" 0,42 kg/m 0.28 lbs/ft 94,8 kPa 28 in/Hg
FC802-12 12 16,51mm 0.65" 27,4mm 1.08" 35 bar 500 psi 175 bar 2500 psi 114,3mm 4.5" 0,51 kg/m 0.34 lbs/ft 94,8 kPa 28 in/Hg

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
