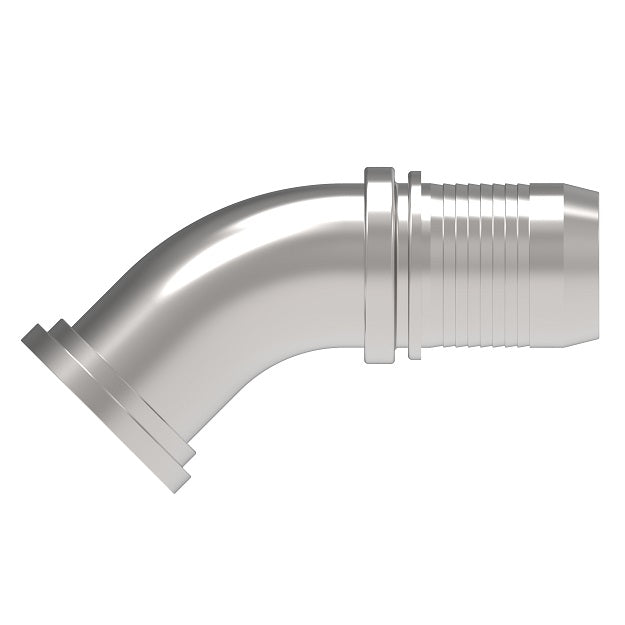

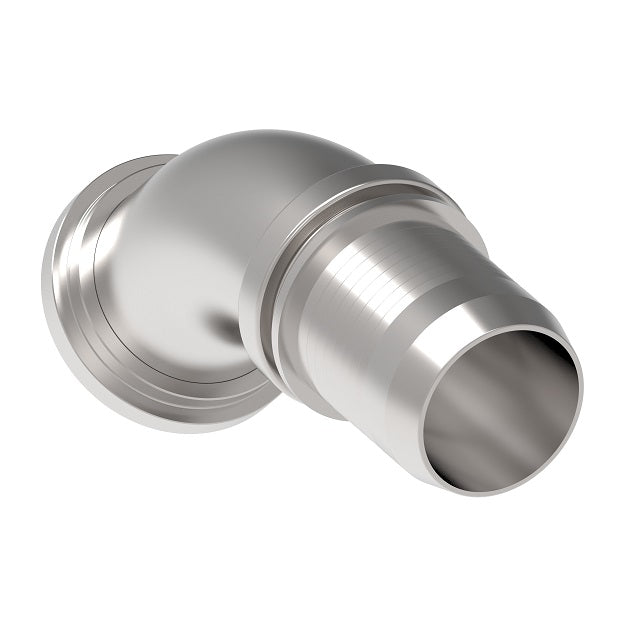

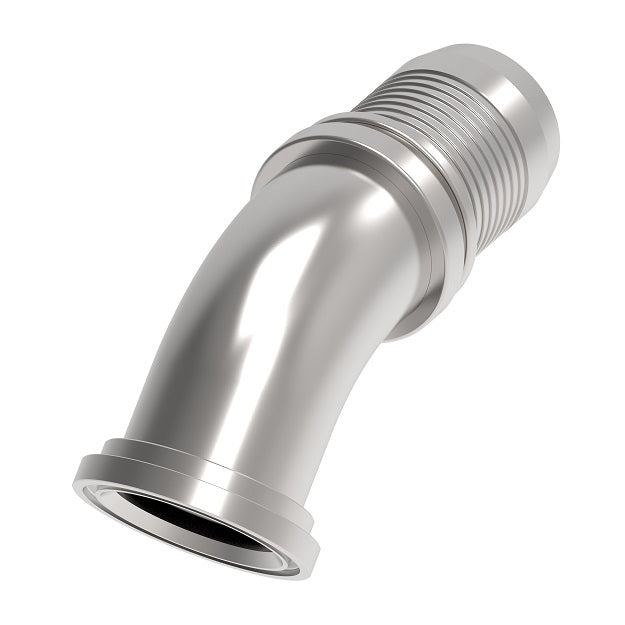

FC8155-4040S Aeroquip by Danfoss | Spiral Single Skive Crimp Fitting | FC Series | 45° Elbow | Nipple Assembly | -40 Code 61 Split Flange x -40 Hose Barb | Carbon Steel

FC8155-4040S Aeroquip by Danfoss | Spiral Single Skive Crimp Fitting | FC Series | 45° Elbow | Nipple Assembly | -40 Code 61 Split Flange x -40 Hose Barb | Carbon Steel

$479.78 - $479.78

$479.78

$479.78 - $479.78

$479.78

Aeroquip® by Danfoss
Spiral Single Skive Crimp Fitting - Code 61 Split Flange SAEJ518c - 45° Elbow

FC Series

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC8155-4040S Danfoss
Brand:	Aeroquip
Series:	FC Series
Shape (Orientation):	45 Degree
Ends Configuration:	2-1/2in Code 61 Flange, 2-1/2in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	FC254 Series \| FC273 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Complete Fitting Carbon Steel Part Number	Nipple Only Carbon Steel Part Number	Socket Carbon Steel Part Number	Flange Head Diameter KØ	Hose Size	A	D	EØ	H
FC9155-4040S	FC8155-4040S	FC3023-40S	3.31"	-40	6.89"	4.18"	2.10"	1.66"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
