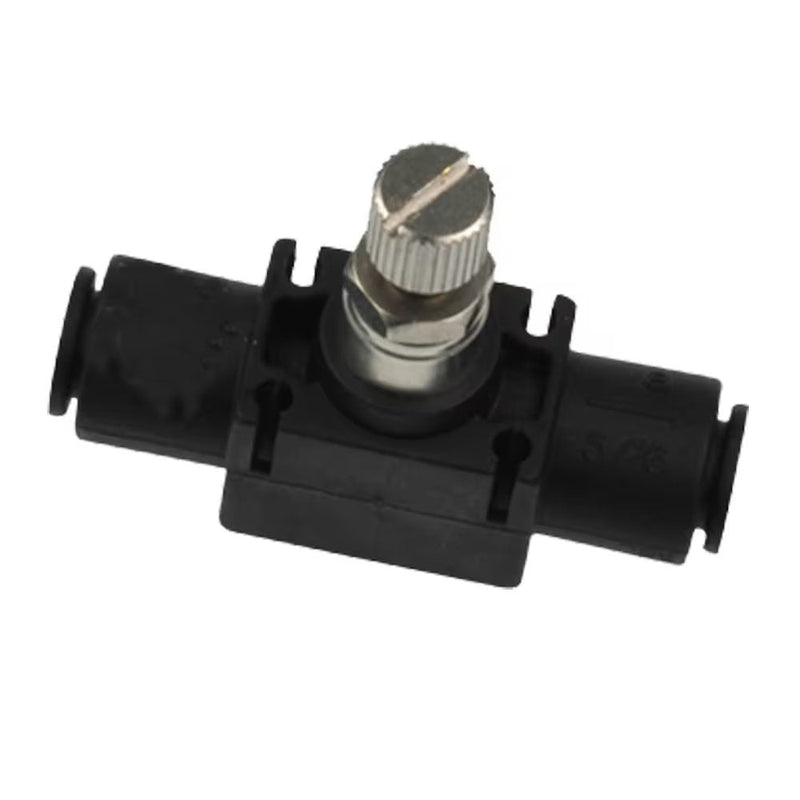

FC832-12M by Parker | In-Line Flow Control | 12 mm Push-to-Connect x 12 mm Push-to-Connect | 86.0 mm Length | 67.5 mm Width | Straight | Glass-Reinforced Nylon | Pack of 2

Save $18.24

$130.83

$130.83 - $130.83

$130.83

$112.59

$112.59 - $112.59

$112.59

by Parker Hannifin
In-Line Flow Controls:FC832 In-Line Flow Control

Package Quantity: 2 Units

Specifications for Variant SKU: FC832-12M Parker \| 2 \|
Series:	FC832 Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Glass reinforced nylon 6.6 body Stainless straight gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D seal Panel mountable
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	Hex	H Closed	H Open	K	L	L1	N1	N2	T
FC832-4M	4 mm	5 mm	29.5 mm	33.5 mm	12.0 mm	15.0 mm	12.0 mm	8.0 mm	11.0 mm	2.2 mm
FC832-6M	6 mm	8 mm	40.5 mm	44.5 mm	17.0 mm	51.0 mm	23.0 mm	11.0 mm	17.0 mm	3.2 mm
FC832-8M	8 mm	11 mm	44.0 mm	50.0 mm	18.5 mm	60.5 mm	26.0 mm	12.5 mm	20.0 mm	3.2 mm
FC832-10M	10 mm	14 mm	52.0 mm	64.0 mm	24.0 mm	76.0 mm	33.0 mm	16.0 mm	26.0 mm	4.2 mm
FC832-12M	12 mm	14 mm	57.5 mm	67.5 mm	28.0 mm	86.0 mm	35.0 mm	20.0 mm	27.5 mm	4.2 mm
